Description

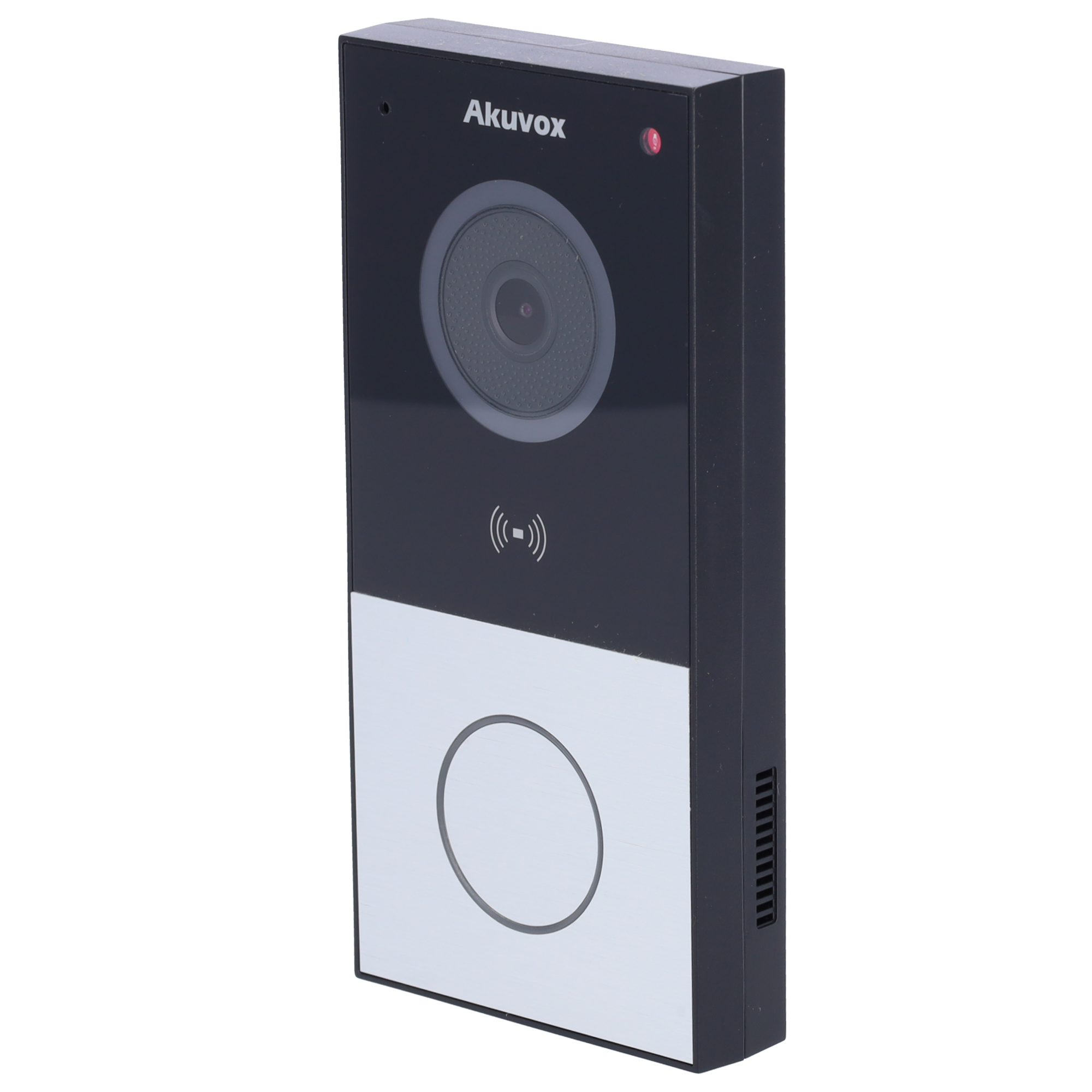

From the Akuvox range: surface mount IP video intercom AK-E12S, suitable for outdoor use with IP65 protection. 2 MP resolution and powered by PoE, according to the manufacturer’s specifications.
Main features:
- 2 MP camera | Two-way audio
- Access with MF card, NFC, and BLE | 1 relay
- PoE, standard SIP
- Cloud maintenance
- Monitor and panel connection via Cloud
Box contents:
- IP video intercom with 2 MP camera for 1 apartment
- Integrated speaker and microphone
- Two-way audio with Crystal Clear technology
- Night vision with LED lighting
- TCP/IP connection
- PoE IEEE802.3af
- MF card, NFC, and Bluetooth reader
- Remote door unlocking
Technical specifications
| Model | E12S |
|---|---|
| Access control | Door opening with MF card 13.56 MHz, NFC, and Bluetooth, with logs |
| Keypad | Mechanical call button with configurable LED lighting |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x exit button and 1 x Wiegand IN |
| Image sensor | 1/2.7″ 2 Megapixel CMOS with infrared and light sensor |
| Viewing angle | 123° (H) / 69° (V) |
| Camera resolution | 1920×1080 – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Memory | MicroSD slot up to 32 GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud with installer account or through local web browser |
| Material | Plastic |
| Protection rating | IP65 |
| Operating temperature | -40 °C ~ +55 °C |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it working, please request an installation quote.
Who it’s for and who it’s not for. This is a simple surface-mounted intercom for a residence: 2 MP camera, one call button, and a lock relay. It is not designed for a gate exposed to impacts — the casing is plastic with IP65 rating — nor for an entrance with two doors that need to be opened separately.
What’s included in the box. The IP video intercom with a 2 MP camera for an apartment, speaker and microphone with Crystal Clear two-way audio, night vision via LED lighting, MF card reader, NFC, and Bluetooth, and remote door unlocking.
How we install it on the Costa del Sol. Surface-mounted and outdoor, with dimensions of 146 × 70 × 23 mm, IP65 protection, and operating temperature range of −40 °C to +55 °C. A single network cable powers and connects it via PoE IEEE802.3af, and it works on a local network or through the cloud. On the Costa del Sol, the height is determined so that an adult appears centered in the frame and not on their head.
Frequently Asked Questions
Does the unit itself store anything or does it depend on the monitor?
It has a microSD slot for up to 32 GB. It is not a recorder, but it allows for capturing what happens at the door without relying on another device.
How much of the person calling can be seen?
Its 1/2.7″ 2 Megapixel camera has a horizontal field of view of 123° and a vertical field of view of 69°, with an image resolution of 1920×1080 at 25fps and H.264 and H.265 codecs. This allows you to see who is calling and what they have in their hands.
Can it open two different doors?
No: it has one lock relay and one Wiegand output. For two opening points, you would need to choose a model with two relays.
