Description

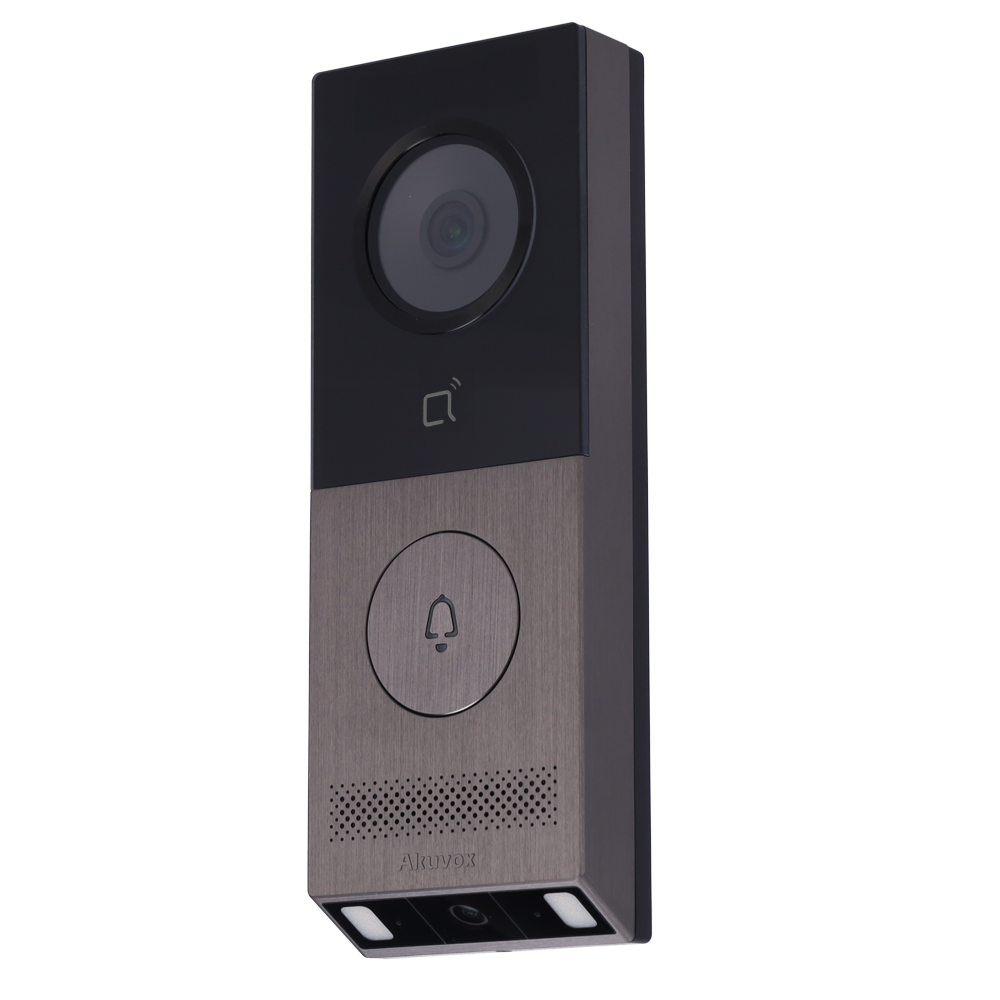

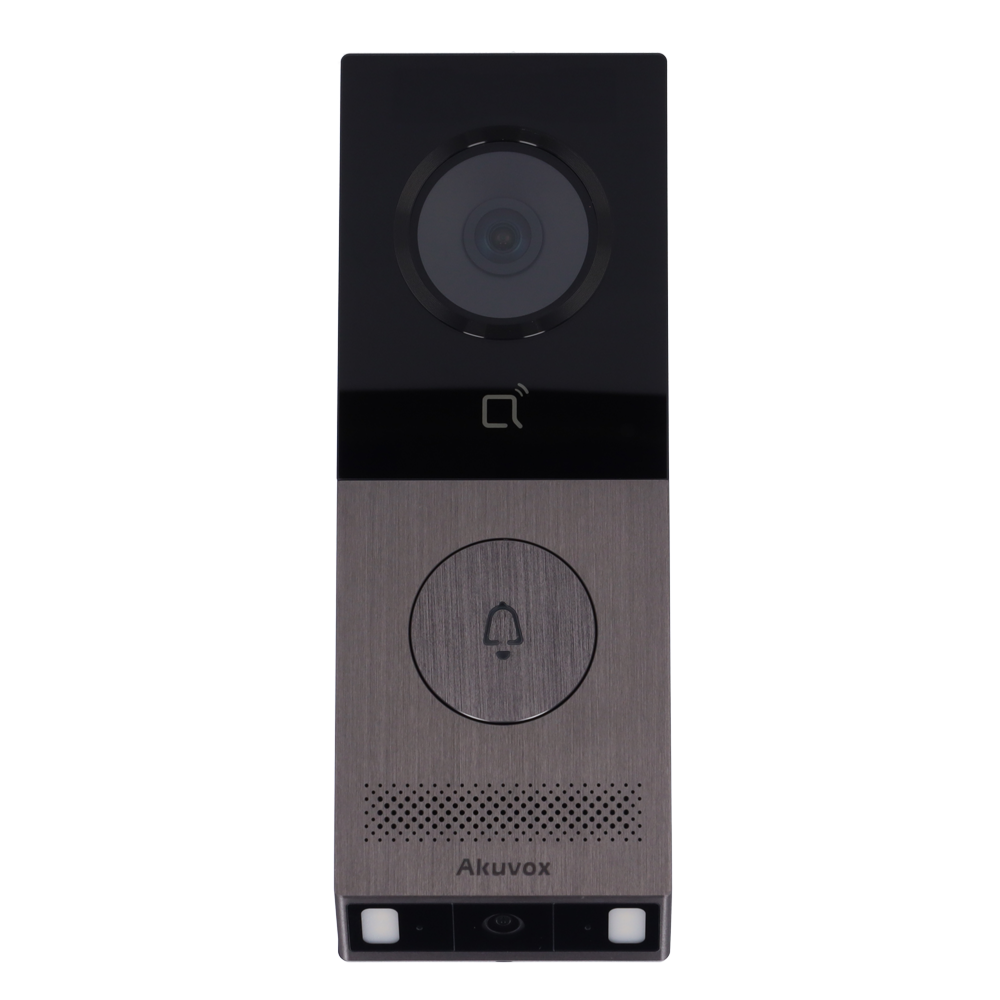

Akuvox IK08 vandal-resistant surface mount IP video intercom AK-X910. Designed for outdoor use with IP66 protection. 5 MP resolution and powered by PoE, according to the manufacturer’s specifications.
Main features:
- 5 MP/2 MP camera | Two-way audio
- MF card, NFC, BLE, and QR | 2 relays
- PoE, standard SIP
- Cloud maintenance
- Cloud connectivity | 12V output
Box contents:
- IP video intercom with 5 MP camera for 1 apartment
- Secondary 2 MP downward-facing camera for package detection and QR reading
- Integrated speaker and dual microphone
- Two-way audio with Crystal Clear technology – Night vision with IR illumination
- TCP/IP connection
- PoE+ IEEE802.3at
- Integrated MF and NFC card reader
- Access via BLE and QR keys
Technical specifications
| Model | X910 |
|---|---|
| Access control | Door opening with MF card 13.56 MHz, NFC, BLE, and QR, with logs |
| Keyboard | Mechanical call button with configurable LED lighting |
| Outputs | 2 x relay for lock (12V/600mA), 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 2 x exit buttons and 1 x Wiegand IN |
| Image sensor | 1/2.78″ CMOS with infrared and light sensor |
| Viewing angle | 150° (H) / 116° (V) |
| Camera resolution | 2K (2000×2000) – 30fps, 1920×1080 – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p, 2K |
| Secondary camera | 2 MP downward-facing for package detection and QR reading |
| Video encoding | H.264 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud with installer account or through local web browser |
| Material | Aluminum alloy |
| Protection grade | IP66 and IK08 |
| Operating temperature | -40 °C ~ +55 °C |
| Dimensions | 192 (H) x 70 (W) x 27 (D) mm |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it functioning, please request an installation quote.
Who it’s for and who it’s not for. This is the street panel for an exposed gate: aluminum alloy with IP66 and IK08 rating, and a 5 MP camera with a 150° field of view. It is not the option for a sheltered door of a quiet home, where a plastic panel serves the same purpose for less.
What’s included in the box. The IP video intercom with a 5 MP camera for an apartment, a secondary 2 MP downward-facing camera for package detection and QR code reading, a speaker, and a dual microphone with Crystal Clear two-way audio, infrared night vision, MF and NFC card reader, and opening via BLE and QR keys.
How we install it on the Costa del Sol. It is surface-mounted on a pillar or wall, outdoors, with dimensions of 192 × 70 × 27 mm and an operating range of −40 °C to +55 °C. It is powered and communicates via a single PoE+ IEEE802.3at network cable. It works on a local network or via the cloud, and the firmware is updated remotely. On the Costa del Sol, it should be oriented to avoid direct sunlight, which can wash out the image of a face in backlight.
Frequently Asked Questions
What is the purpose of the second camera, the one facing down?
For two specific things: to see the package left on the ground and to read the QR codes used as keys. It is a 2 MP camera separate from the main 5 MP one.
Can you enter without a key and later know who entered?
Yes. It opens with a 13.56 MHz MF card, with NFC, with BLE, and with QR, and keeps records of the openings. This allows access to be granted to a person and revoked without changing anything else.
What can be connected to its outputs?
Two 12V/600mA lock relays, one Wiegand output, and one RS485, in addition to two exit push button inputs and one Wiegand input. This manages two opening points: for example, the car gate and the pedestrian door.
