Description

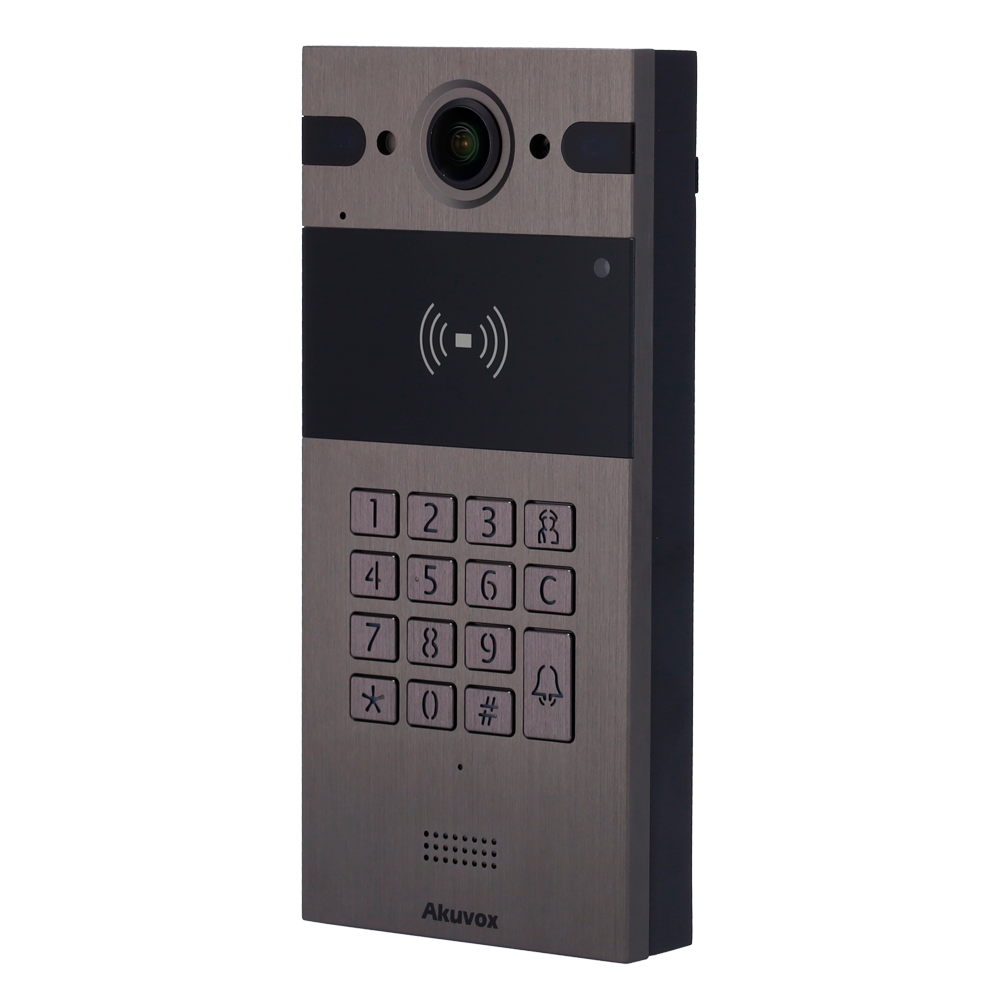

Akuvox presents the AK-R25K surface mount IP video intercom, suitable for outdoor use with IP65 protection. It features a 4 MP resolution and is powered by PoE, according to the manufacturer’s specifications.
Main features:
- 4 MP wide-angle camera | Two-way audio

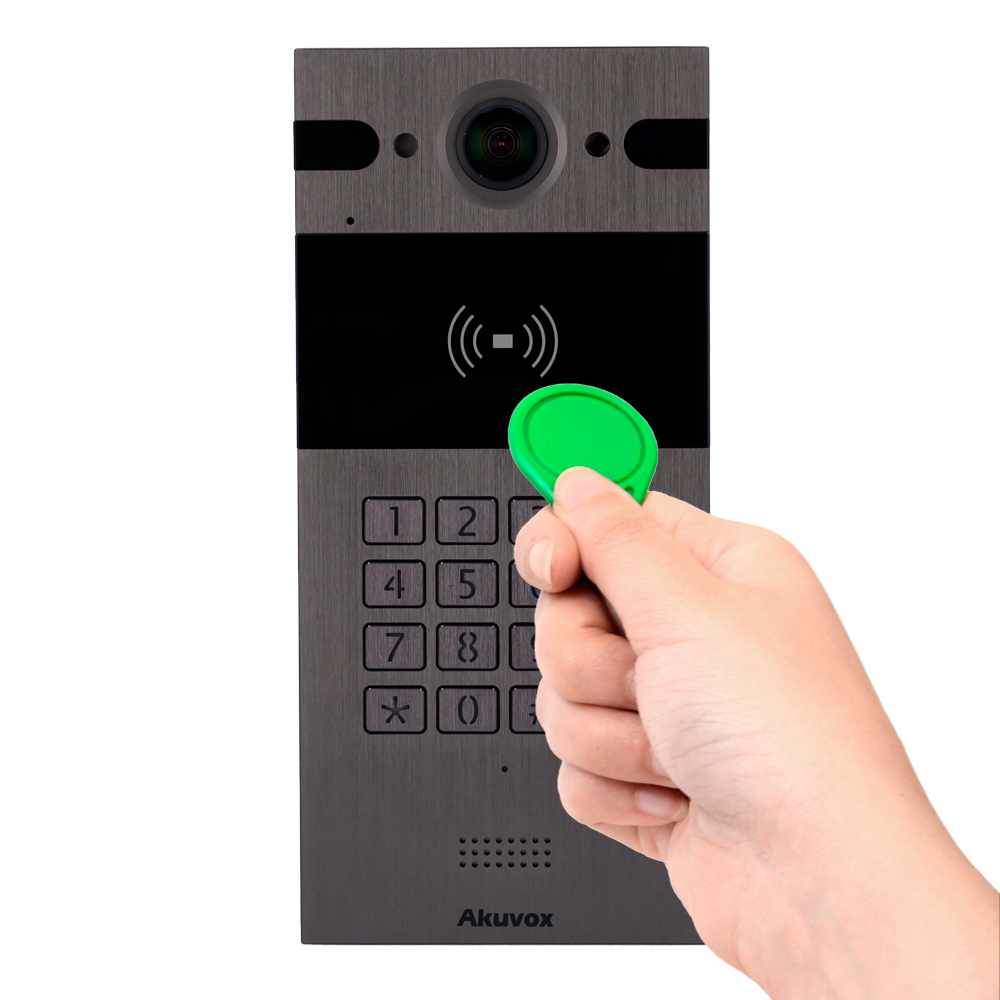

- Access via EM/MF card, NFC, and PIN | 2 relays
- Temporary codes | PoE, standard SIP
- Cloud maintenance
- Monitor and panel connection via Cloud
Box contents:
- IP video intercom with 4 MP camera for 1 apartment
- Wide-angle lens
- Integrated speaker and microphone
- Two-way audio with Crystal Clear technology
- Night vision with IR illumination
- TCP/IP connection
- PoE IEEE802.3af
- Integrated EM/MF and NFC card reader
Technical specifications
| Model | R25K |
|---|---|
| Access control | Door opening with RFID EM 125 kHz and MF 13.56 MHz card, NFC, and PIN, with logs |
| Keyboard | Mechanical numeric call button with configurable LED lighting |
| Outputs | 2 x relay for lock, 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 2 x exit button and 1 x Wiegand IN |
| Image sensor | 1/3.2″ 4 Megapixel CMOS with infrared and light sensor |
| Viewing angle | 150° (H) / 150° (V) |
| Camera resolution | 2048×1080 (2K) – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker featuring noise reduction and Crystal Clear Audio technology |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud with installer account or through local web browser |
| Material | Machined aluminum |
| Protection grade | IP65 |
| Operating temperature | -30 ºC ~ +60 ºC |
| Dimensions | 185 (H) x 85 (W) x 29 (D) mm |
| Power supply | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer it to be fully operational upon delivery, please request an installation quote.
