Description
Akuvox presents the AK-KIT04-IP surface mount video intercom kit with Linux, suitable for outdoor use with IP65 protection. 2 MP resolution and powered by PoE, according to the manufacturer’s specifications.
Main features:
- IP | Panel and monitor
- Crystal Clear two-way audio
- EM/MF and NFC reader | Standard PoE
- 2 relay outputs | Vandal-proof
- Cloud connectivity
Box contents:
- Video intercom kit
- IP technology

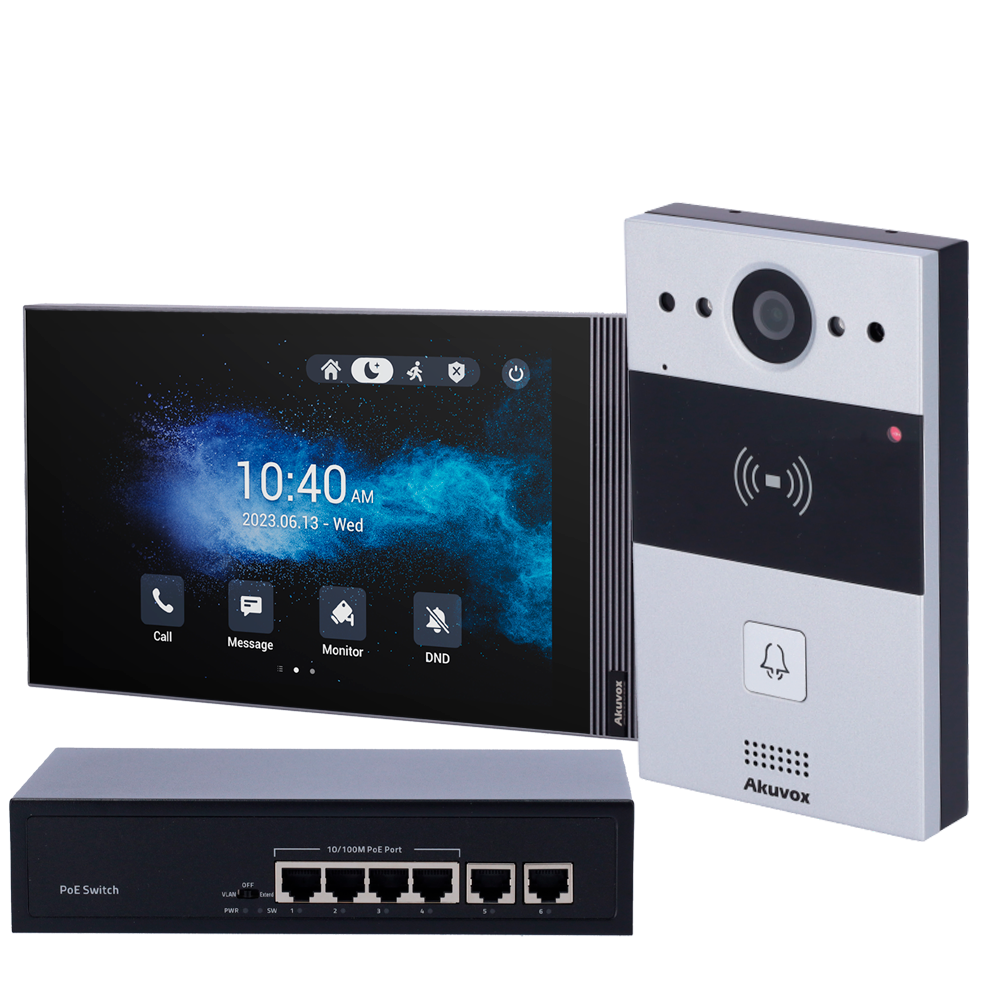

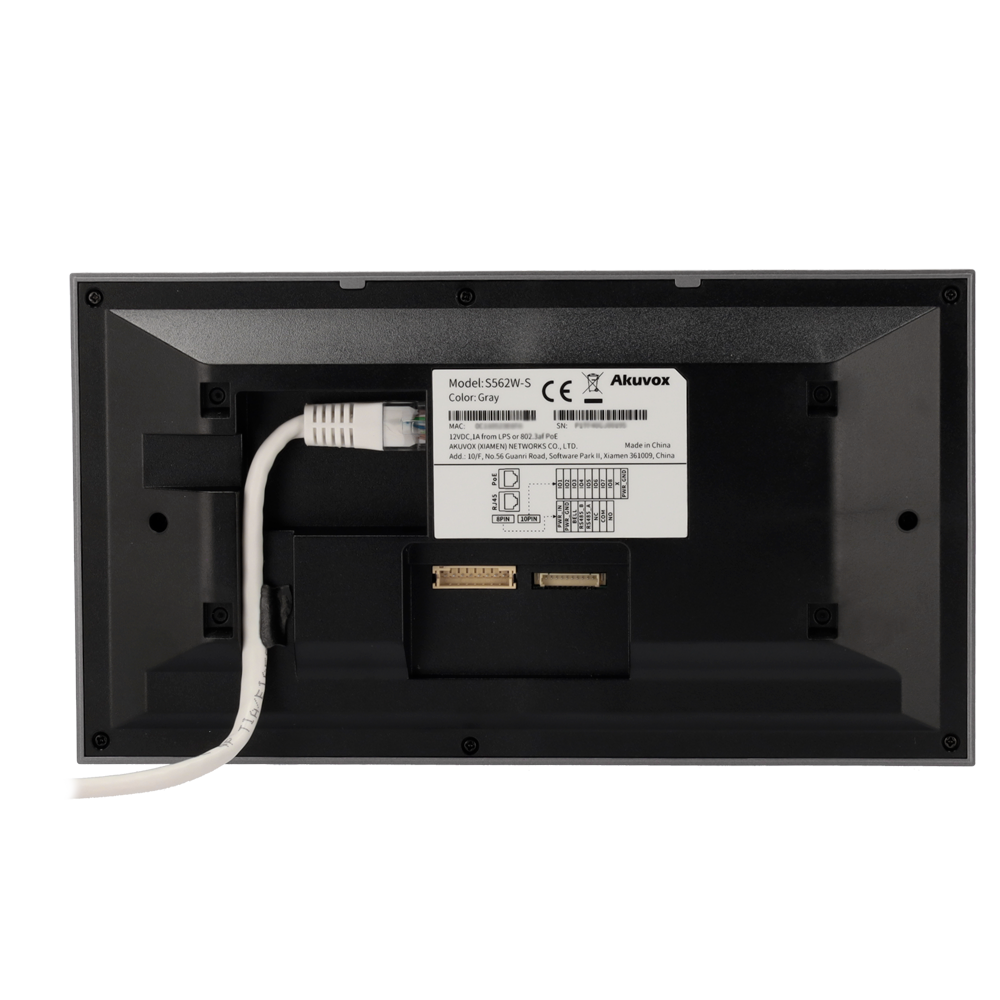

- Kit includes: AK-R20A outdoor video intercom panel for surface mounting with 2 MP HD camera, AK-S562-S indoor surface monitor with 7″ TFT LCD screen and standard PoE switch
- EM/MF and NFC card reader
- Complete configuration via web browser
- Push notifications and device-to-device calls via SmartPlus app
- 4 free users included per household (Villa)
- Call and user directory
Technical specifications

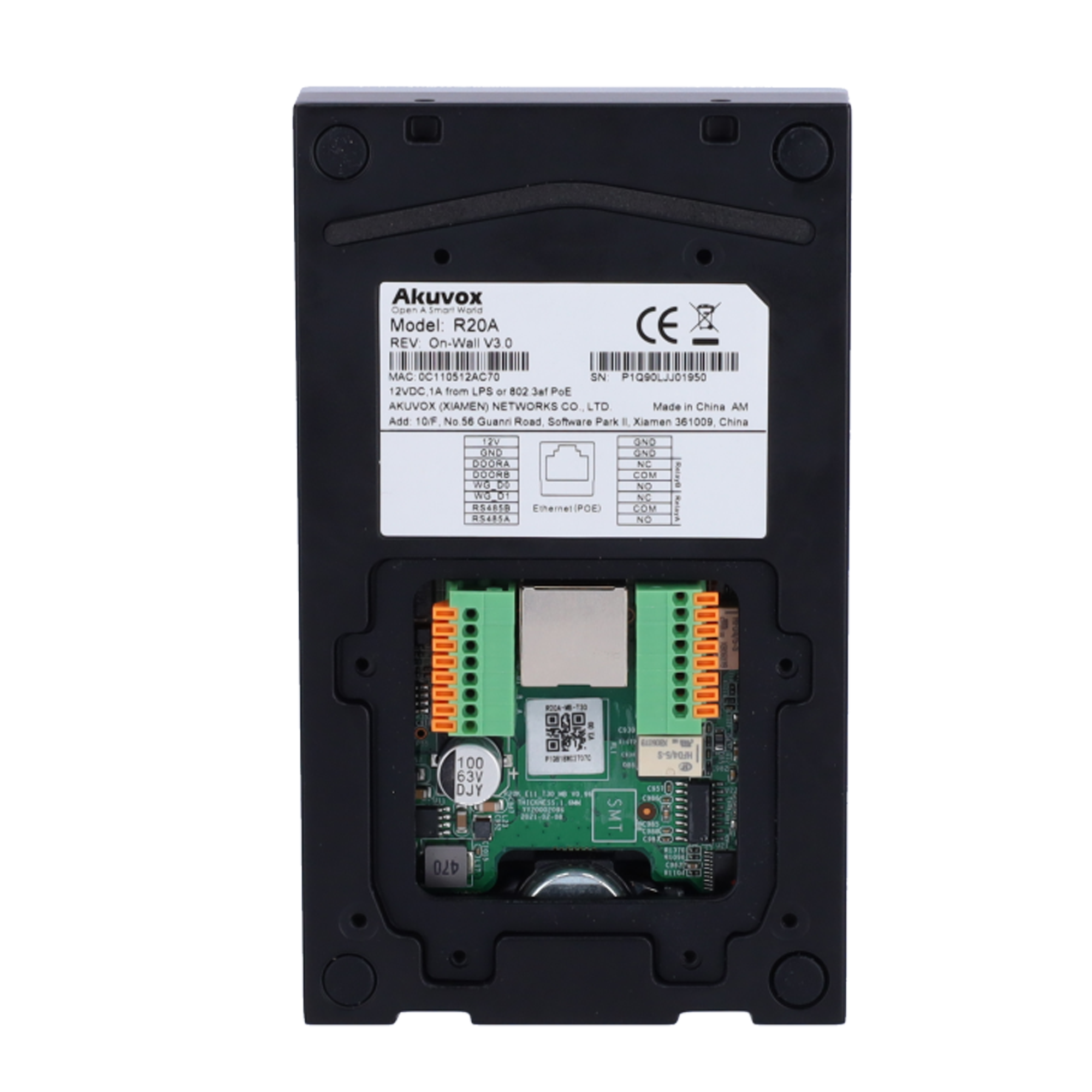

| Model | R20A |
|---|---|
| Access control | Door opening with RFID EM 125 kHz and MF 13.56 MHz card and NFC, with logs |
| Keyboard | Mechanical call button with configurable LED illumination |
| Outputs | 2 x relay for lock (12V/400mA), 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 2 x exit button and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Image sensor | 1/2.7″ 2 Megapixel CMOS with infrared and light sensor |
| Viewing angle | 110° (H) / 58° (V) |
| Camera resolution | 1920×1080 – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud with installer account or via web browser locally |
| Material | Aluminum alloy |
| Protection rating | IP65 |
| Operating temperature | -40 ºC ~ +65 ºC |
| Dimensions | 145 (H) x 85 (W) x 28 (D) mm |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it working, please request an installation quote.
