Description

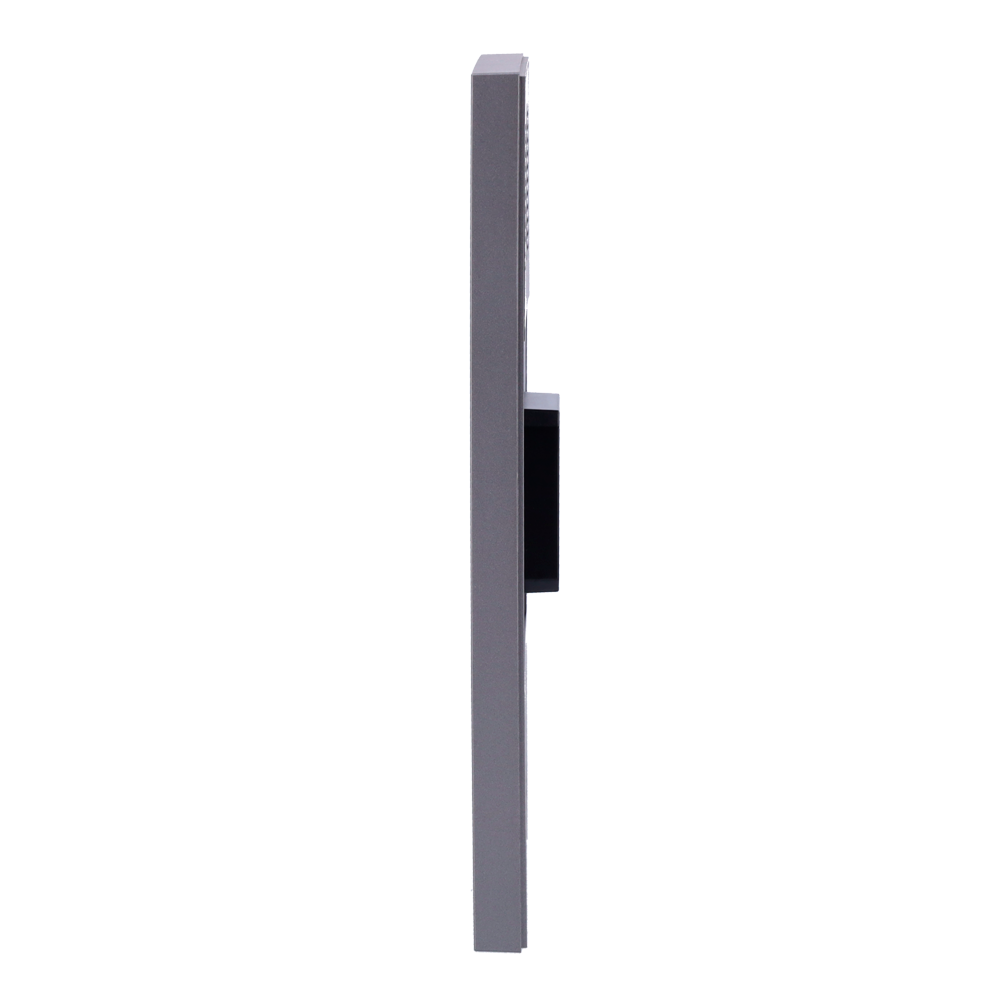

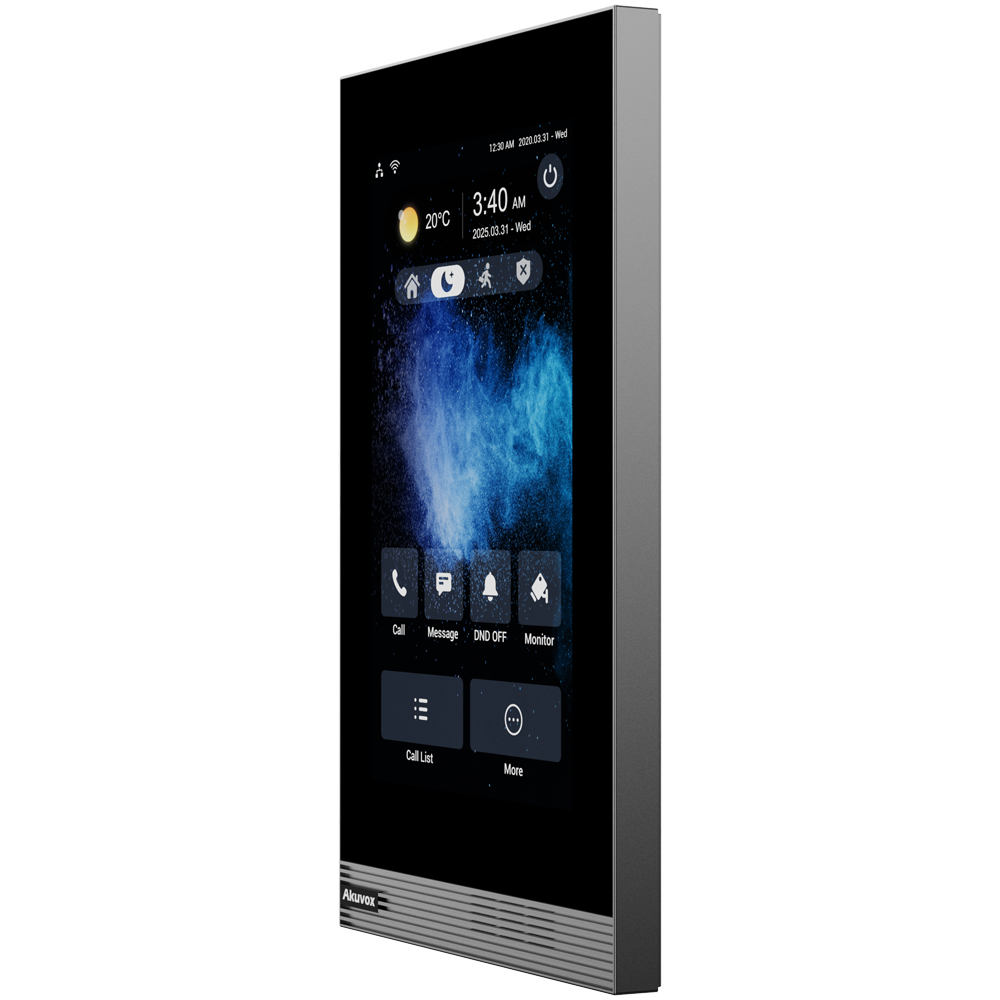

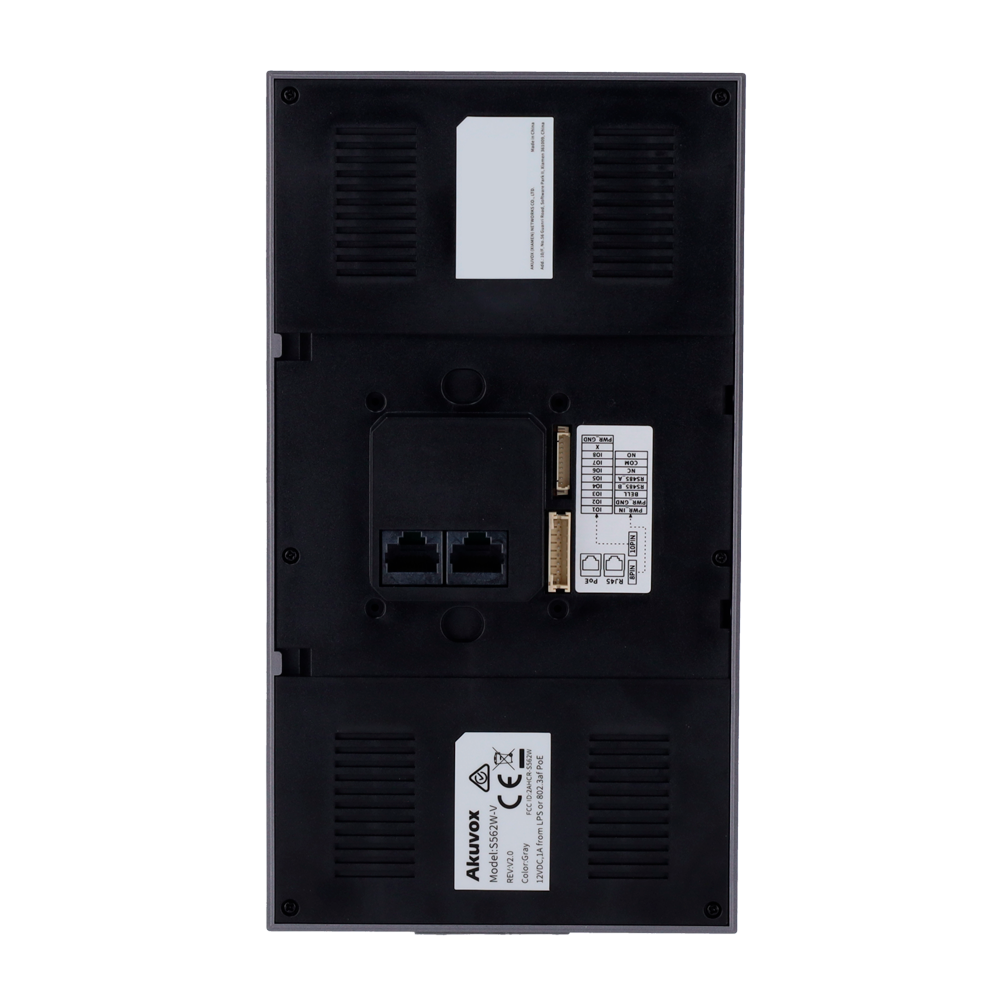

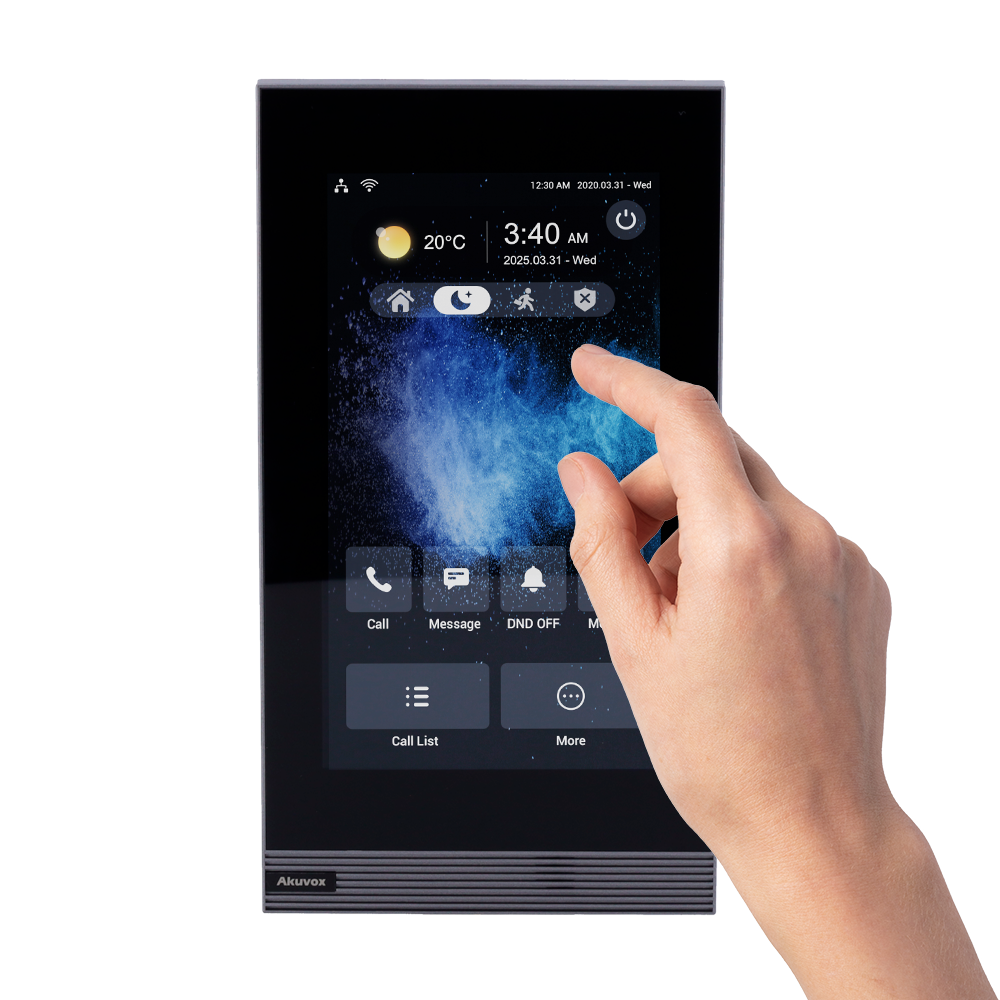

Akuvox presents the AK-S562W-V Linux monitor for video doorphone, designed for indoor installation. Powered by PoE, according to the manufacturer’s specifications.
Main features:
- 7″ vertical TFT display
- Crystal Clear two-way audio | Easy UI
- TCP/IP, PoE, WiFi, standard SIP
- Cloud maintenance
- Monitor and panel connection via Cloud
Box contents:
- 7″ Linux TFT display for video doorphone
- Vertical format
- Easy UI user interface
- Integrated microphone and speaker
- Two-way audio with Crystal Clear technology
- 1 doorbell input and 8 alarm inputs
- 1 relay output
- Image recording and capture
Technical specifications
| Model | S562W-V |
|---|---|
| Operating System | LINUX OS |
| Hardware | RAM: 128 MB | ROM: 128 MB |
| LCD | 7″ TFT 600 x 1024 |
| Operation Mode | Capacitive touch panel |
| Inputs | 8 configurable alarm inputs, 1 doorbell and 1 RS485 |
| Outputs | 1 relay |
| Audio | Two-way audio with microphone and speaker featuring noise reduction and Crystal Clear Audio technology |
| Operating Mode | Local network and/or via cloud on different networks |
| Firmware Updates | Remotely via cloud with installer account or through local web browser |
| Operating Temperature | -10 ºC ~ +45 ºC |
| Dimensions | 216 (W) x 119 (H) x 22 (D) mm |
| Weight | 600 g |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it fully operational, please request an installation quote.
