Description
From the Akuvox range: surface mount video intercom kit Linux AK-KIT03-IP, suitable for outdoor use with IP65 protection. 2 MP resolution and powered by PoE, according to the manufacturer’s specifications.
Main features:
- IP & WiFi | Panel and monitor
- Crystal Clear two-way audio
- MF, NFC, and BLE reader | Standard PoE
- 1 relay output
- Cloud connectivity
Box contents:
- Video intercom kit
- IP & WiFi technology

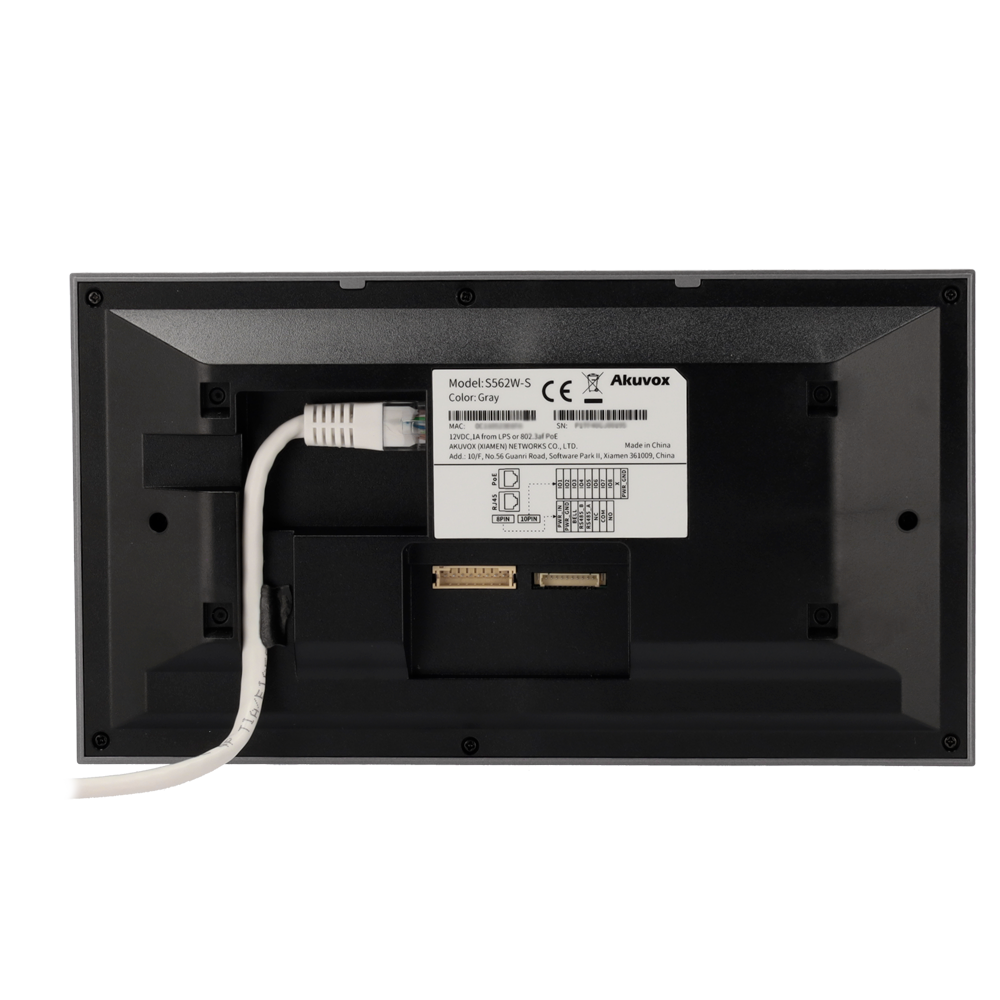

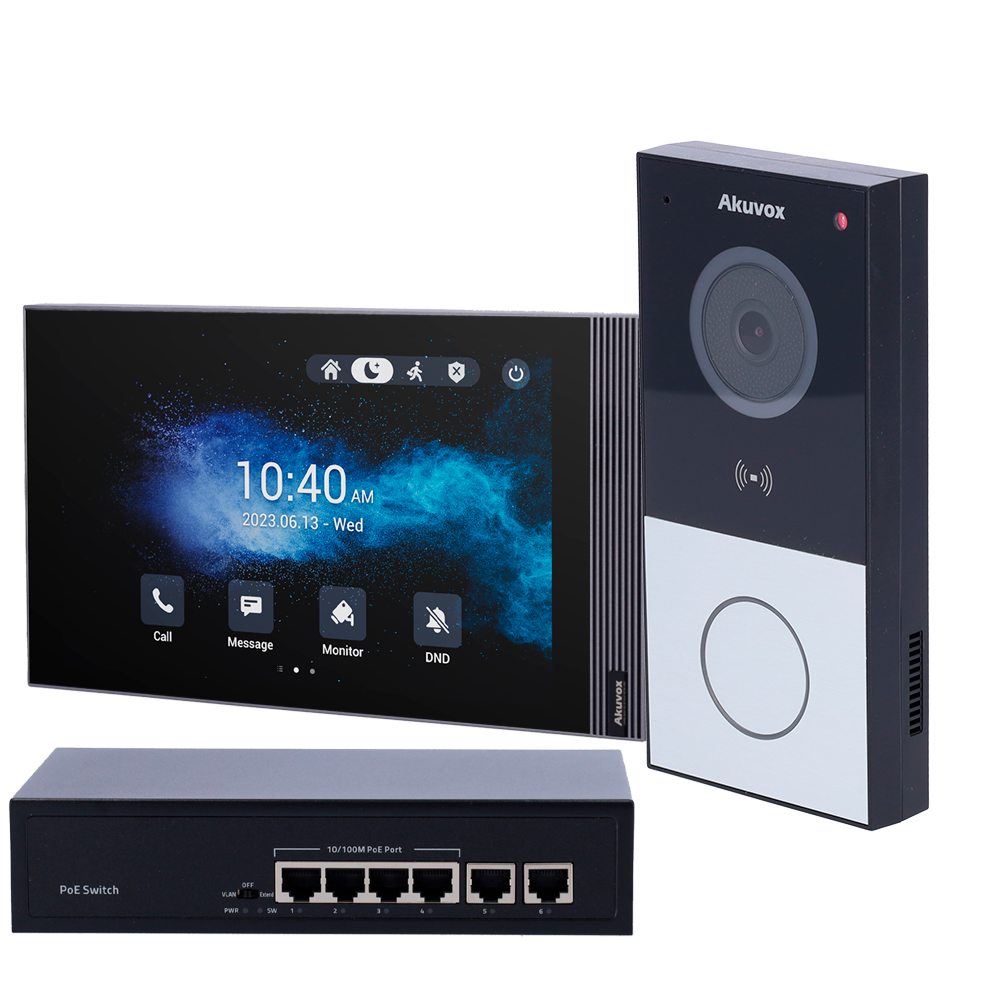

- Kit consisting of: AK-E12W outdoor video intercom panel for surface mount with 2 MP HD camera, AK-S562W-S indoor surface mount WiFi monitor with 7″ TFT LCD screen and standard PoE switch
- MF, NFC, and BLE card reader
- Complete setup via web browser
- Push notifications and device-to-device calls via SmartPlus app
- 4 free users included per household (Villa)
- Call and user directory
Technical specifications

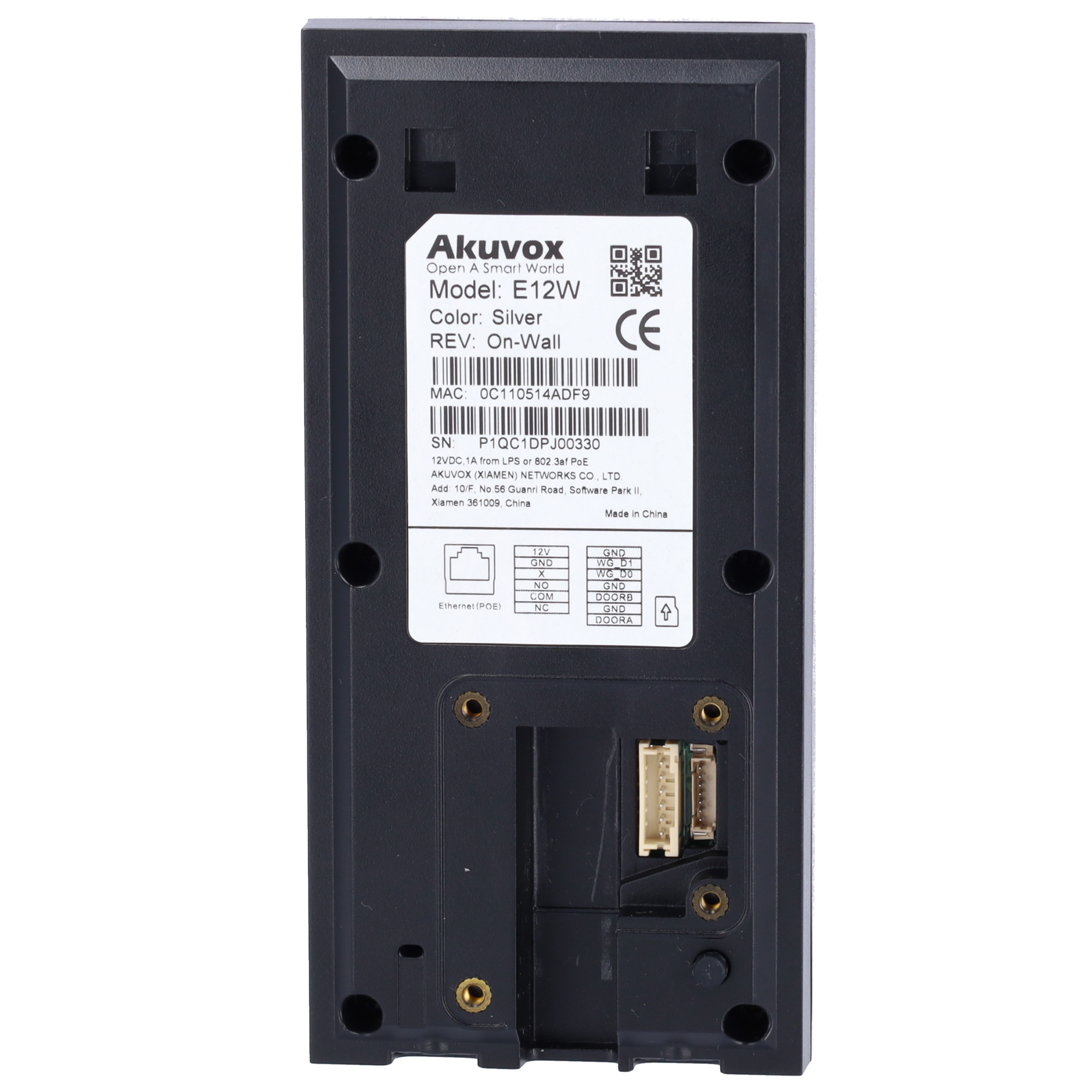

| Model | E12W |
|---|---|
| Access control | Door opening with MF card 13.56 MHz, NFC, and Bluetooth, with logs |
| Keyboard | Mechanical call button with configurable LED lighting |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x exit button and 1 x Wiegand IN |
| Image sensor | 1/2.7″ 2 Megapixel CMOS with infrared and light sensor |
| Viewing angle | 123° (H) / 69° (V) |
| Camera resolution | 1920×1080 – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Memory | MicroSD slot up to 32 GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud with installer account or via web browser locally |
| Material | Plastic |
| Protection grade | IP65 |
| Operating temperature | -40 °C ~ +55 °C |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it operational, please request an installation quote.
Who it’s for and who it’s not for. This kit is designed for a single-family home that wants to see and open the door from their mobile device and grant access with a card to visitors. It is not a community system: the kit is intended for a single residence, including its panel, monitor, and switch.
Frequently Asked Questions
What does the kit include besides the outdoor panel?
It comes with three pieces: the outdoor surface panel AK-E12W with a 2 MP camera, the indoor monitor AK-S562W-S with 7″ and WiFi, and a standard PoE switch to power them.
How can the door be opened without touching the monitor?
With an MF card of 13.56 MHz, using NFC or Bluetooth, and each opening is recorded. This allows granting access to a specific person and revoking it later.
How many mobile devices can receive the call from the panel?
The kit includes 4 users per household in the SmartPlus app, with push notifications and calls between devices.
