Description

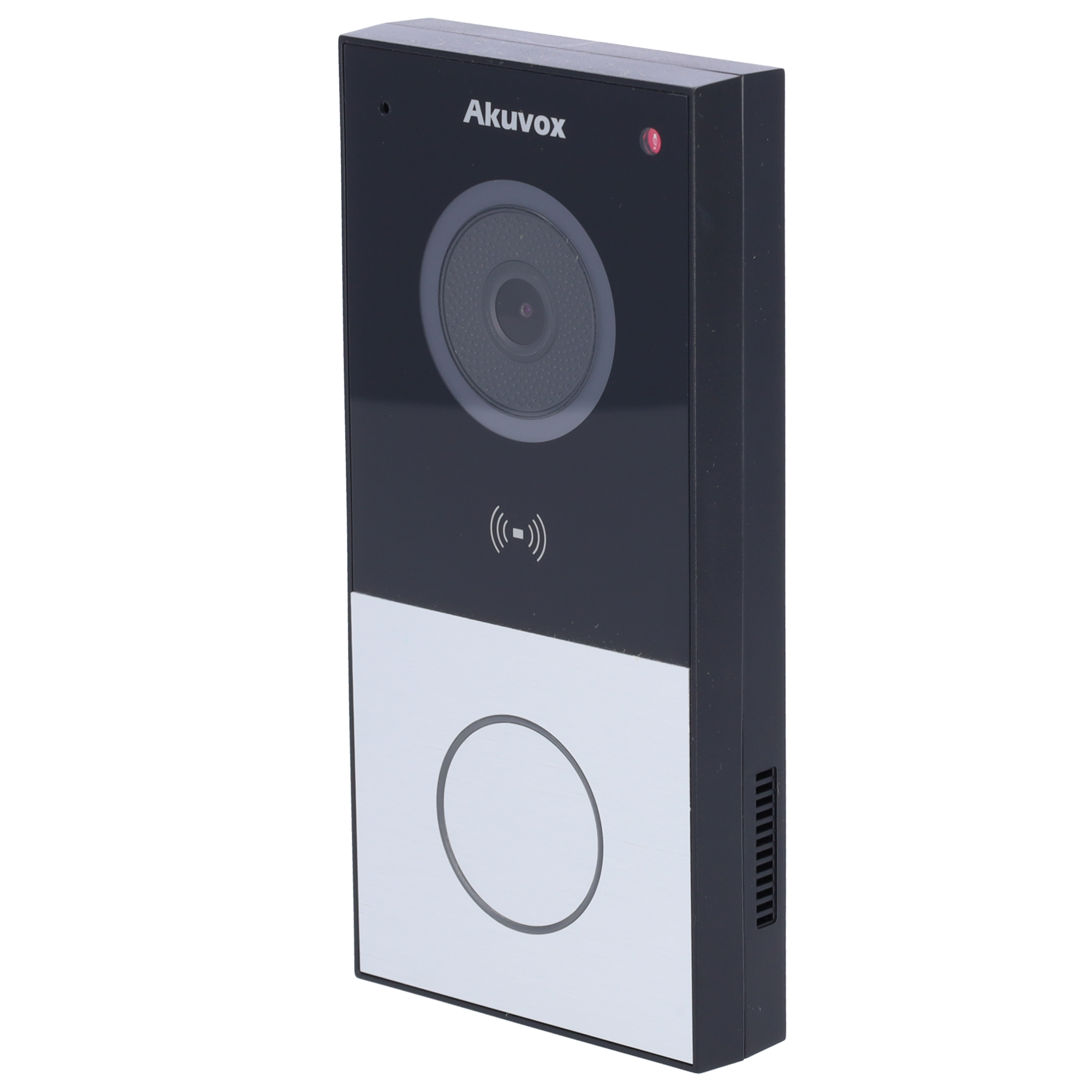

Akuvox AK-E12W surface-mounted IP video intercom, suitable for outdoor use with IP65 protection. 2 MP resolution and powered by PoE, according to the manufacturer’s specifications.
Main features:
- 2 MP camera | Two-way audio
- Access with MF card, NFC, and BLE | 1 relay
- PoE, WiFi, standard SIP
- Cloud maintenance
- Monitor and panel connection via Cloud
Box contents:
- IP video intercom with 2 MP camera for 1 apartment
- Integrated speaker and microphone
- Two-way audio with Crystal Clear technology
- Night vision with LED illumination
- TCP/IP and WiFi connection
- PoE IEEE802.3af
- MF, NFC, and Bluetooth card reader
- Remote door unlocking
Technical specifications
| Model | E12W |
|---|---|
| Access control | Door opening with MF card 13.56 MHz, NFC, and Bluetooth, with logs |
| Keyboard | Mechanical call button with configurable LED illumination |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x exit button and 1 x Wiegand IN |
| Image sensor | 1/2.7″ 2 Megapixel CMOS with infrared and light sensor |
| Viewing angle | 123° (H) / 69° (V) |
| Camera resolution | 1920×1080 – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Memory | MicroSD slot up to 32 GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud with installer account or through local web browser |
| Material | Plastic |
| Protection grade | IP65 |
| Operating temp. | -40 ºC ~ +55 ºC |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it working, request an installation quote.
