Description

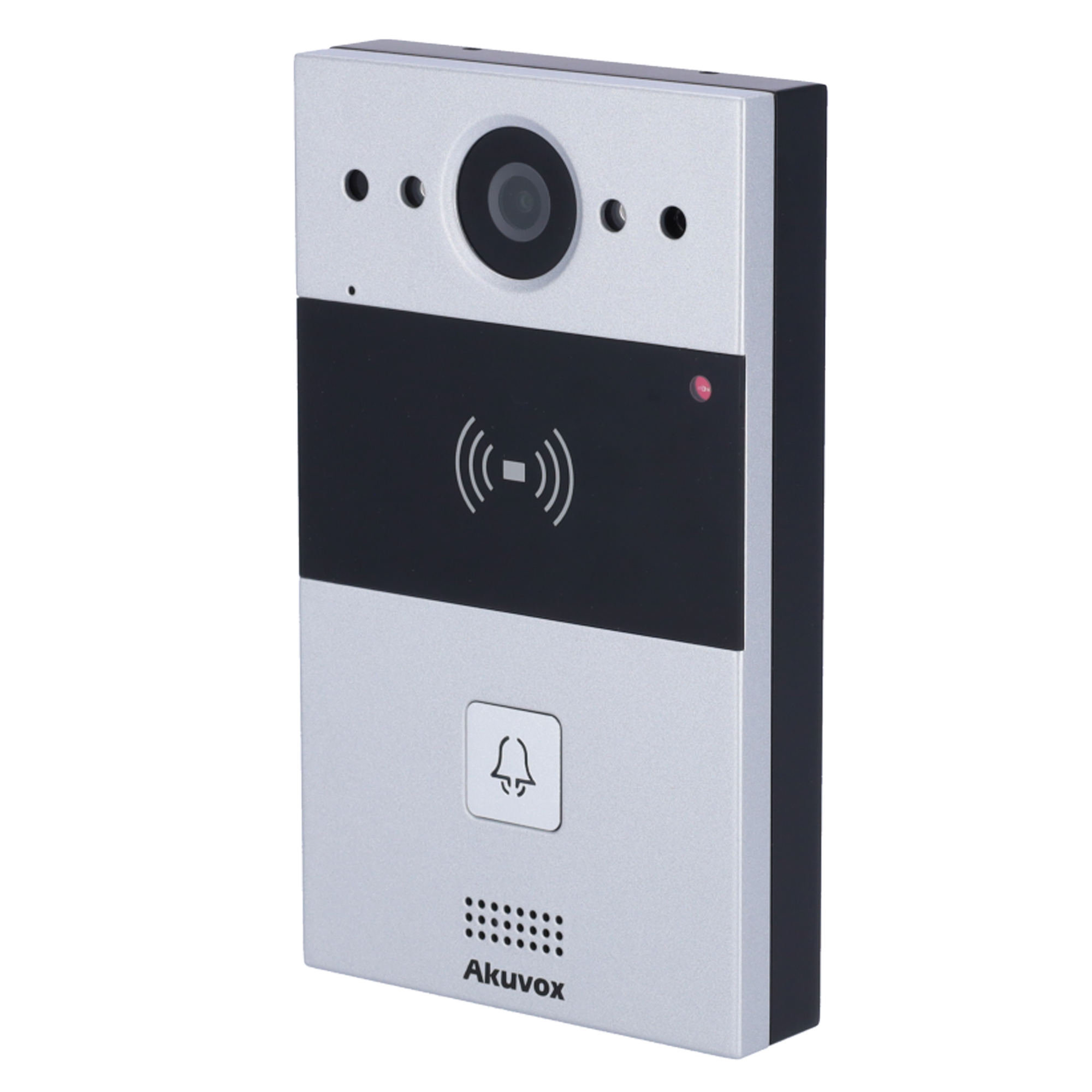

Akuvox AK-R20A Surface Mount IP Video Intercom, suitable for outdoor use with IP65 protection. 2 MP resolution and powered by PoE, according to the manufacturer’s specifications.
Main features:
- 2 MP camera | Two-way audio
- Access with EM/MF card and NFC | 2 relays
- PoE, standard SIP
- Cloud maintenance
- Connection via Cloud | 12V output
Box contents:
- IP video intercom with 2 MP camera for 1 apartment
- Integrated speaker and microphone
- Two-way audio with Crystal Clear technology
- Night vision with IR illumination
- TCP/IP connection
- PoE IEEE802.3af
- Integrated EM/MF and NFC card reader
- Remote door unlocking
Technical specifications
| Model | R20A |
|---|---|
| Access control | Door opening with RFID EM 125 kHz and MF 13.56 MHz cards and NFC, with logs |
| Keyboard | Mechanical call button with configurable LED lighting |

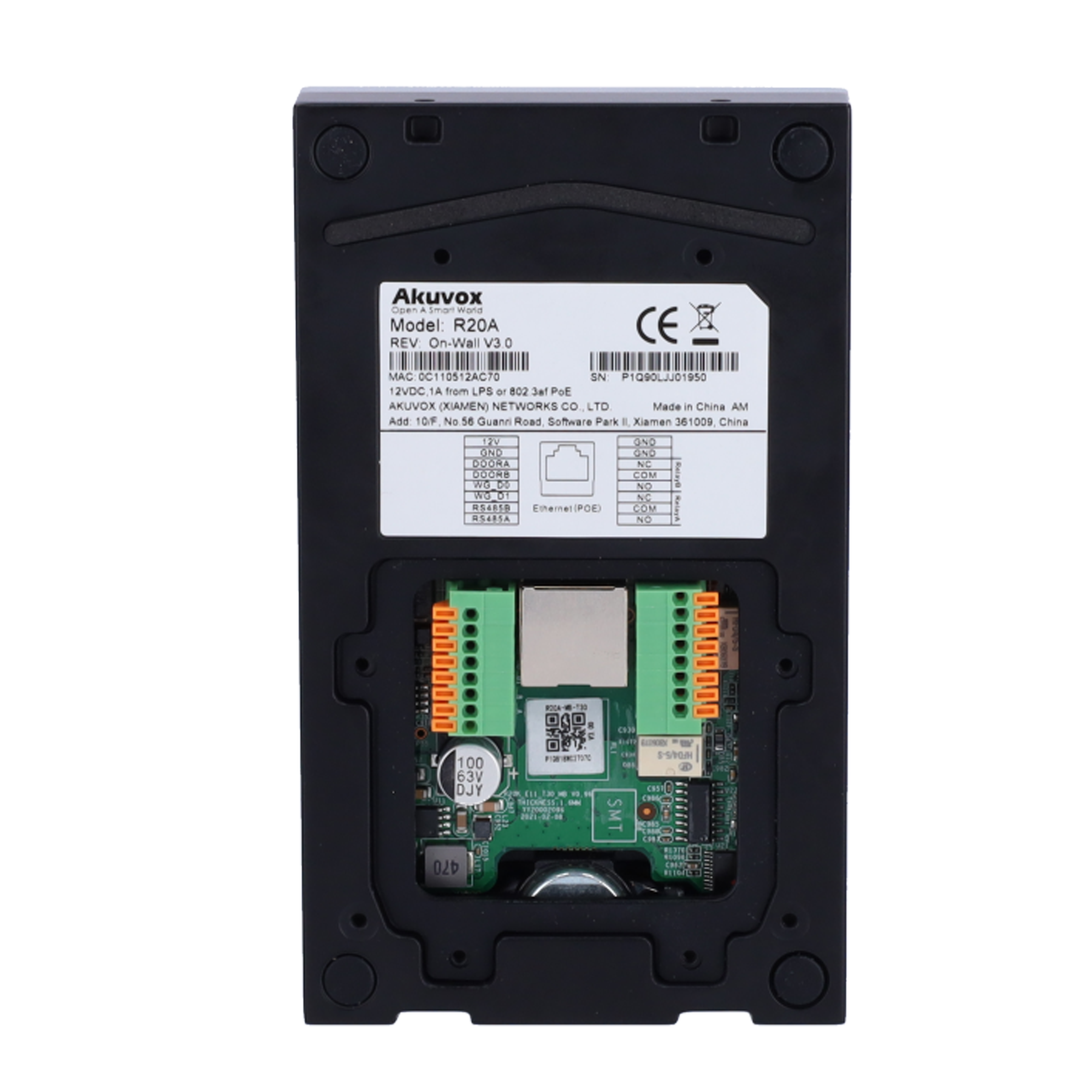

| Outputs | 2 x relay for lock (12V/400mA), 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 2 x exit button and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Image sensor | 1/2.7″ 2 Megapixel CMOS with infrared and light sensor |
| Viewing angle | 110° (H) / 58° (V) |
| Camera resolution | 1920×1080 – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |

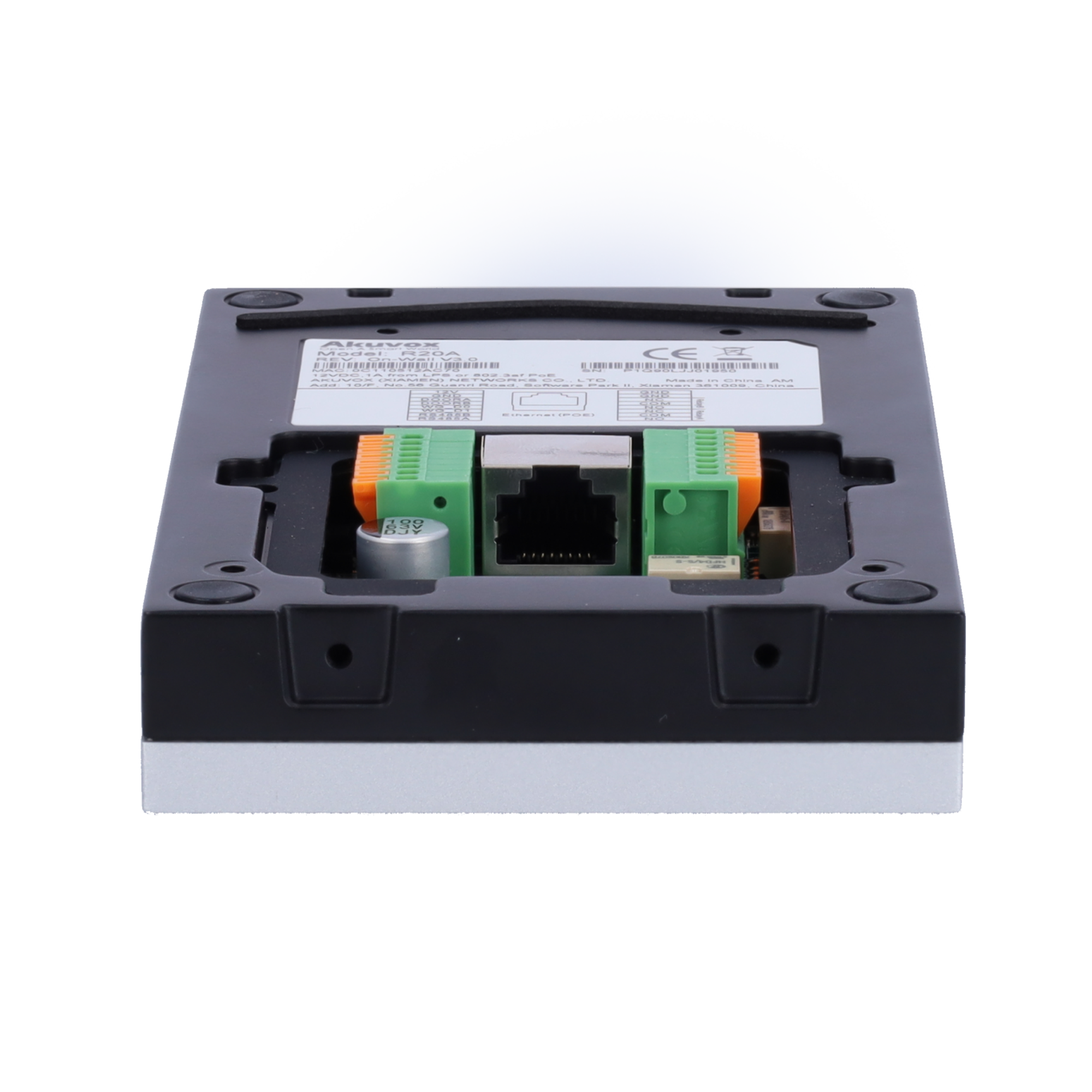

| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud with installer account or through local web browser |
| Material | Aluminum alloy |
| Protection rating | IP65 |
| Operating temperature | -40 °C ~ +65 °C |
| Dimensions | 145 (H) x 85 (W) x 28 (D) mm |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it working, please ask us for an installation quote.
Who it’s for and who it’s not for. This is the panel for when there are already old key fobs circulating: it reads 125 kHz EM RFID cards as well as 13.56 MHz MF and NFC. It is not the panel for a wide entrance where you need to see side to side: it opens 110° horizontally, less than the wide-angle models.
What’s included in the box. The IP video intercom with a 2 MP camera for an apartment, speaker and microphone with Crystal Clear two-way audio, infrared night vision, integrated EM and MF card reader, and remote door unlocking.

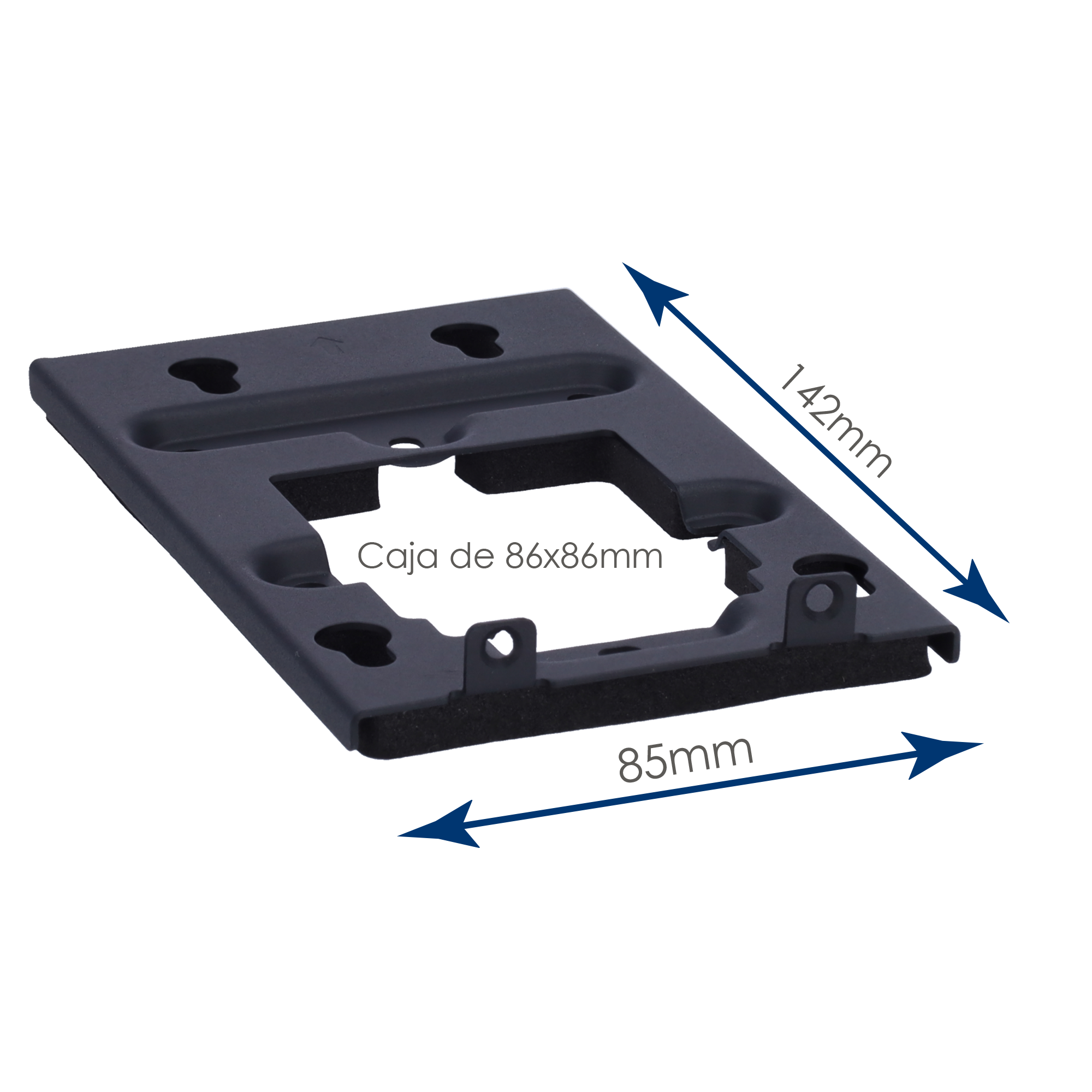

How we install it on the Costa del Sol. Surface and outdoor, made of aluminum alloy measuring 145 × 85 × 28 mm, with IP65 and a wide range of −40 °C to +65 °C. It operates on a single network cable with PoE IEEE802.3af and works locally or via the cloud, with remote updates. On the Costa del Sol, the gate pillar is the usual spot, and the deciding factor is the angle relative to the afternoon sun.
Frequently Asked Questions
Do the 125 kHz key fobs we already have work?
That’s what this model is for: it reads 125 kHz EM RFID cards, 13.56 MHz MF, and NFC, and keeps records. This prevents distributing new credentials to everyone on the day of the change.
Can a card be prevented from being passed around?
It has anti-passback, configurable from the cloud in office project. This means the same credential cannot enter twice in a row without having exited.
What is the camera’s coverage?
110° horizontally and 58° vertically, with an image of 1920×1080 at 25fps. It has a tighter frame than the wide-angle models: it sees well who is calling, and less of what is happening on the sides.
