Description

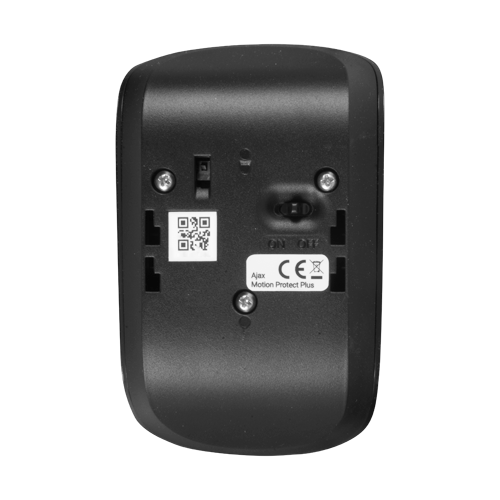

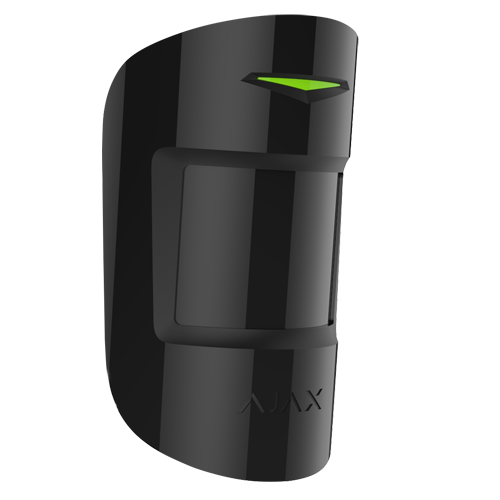

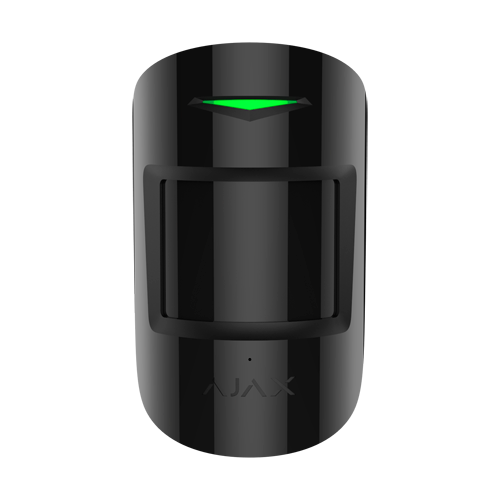

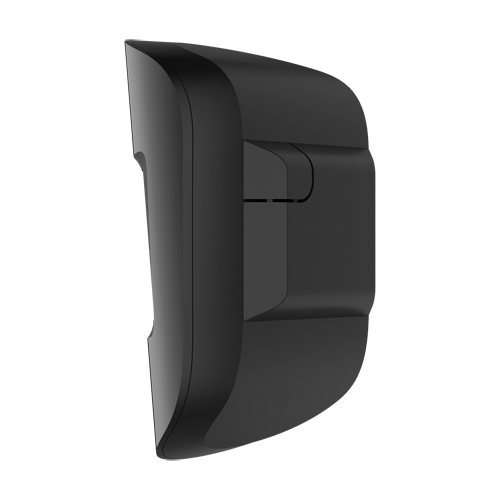

PIR Detector, Grade 2 from Ajax AJ-MOTIONPROTECTPLUS-B, for indoor installation.
Main features:
- Triple technology: PIR and K-band microwave
- Wireless 868 MHz Jeweller
- Pet immunity
- Adjustable sensitivity
- Detection range 12 m
Box contents:
- Pet immune dual technology volumetric PIR detector
- Bidirectional
- Wireless 868 MHz Jeweller
- Dual technology: 1 infrared, 1 microwave
- Internal antenna range in open space 1200 m
- Motion detection indicator
- Detection: Range 12 m / H: 88.5º / V: 80º
- Anti-tamper
Technical specifications
| Technology | PIR volumetric and microwave sensor |
|---|---|
| Security grade | Grade 2 |
| PIR lens | 24 zones and 6 planes |
| Detection field | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1200 m in open space |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Sensitivity | Adjustable. 3 levels (low, medium, and high) |
| LED indication | Alarm, tamper, signal |
| Battery | 1 CR123A 3.0 V battery (approximate lifespan 5 years) |
| Operating temperature | 0º C ~ 50º C |
| Cover material | ABS plastic |
| Dimensions (without mount) | 110 (H) x 65 (W) x 50 (D) mm |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it working, request an installation quote.
