Description
A curtain detector: instead of sweeping the whole room, it raises a thin barrier — 6° horizontal and 90° vertical — in front of a window or a door. That lets you leave the alarm armed while you are at home, because whoever moves inside does not set it off. Indoor, with sensitivity adjustable in three steps; it has no anti-masking.

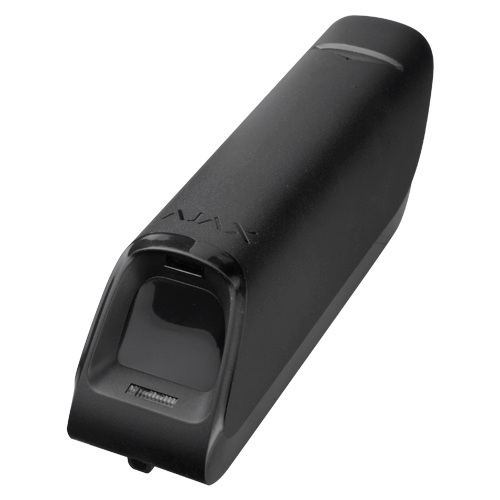

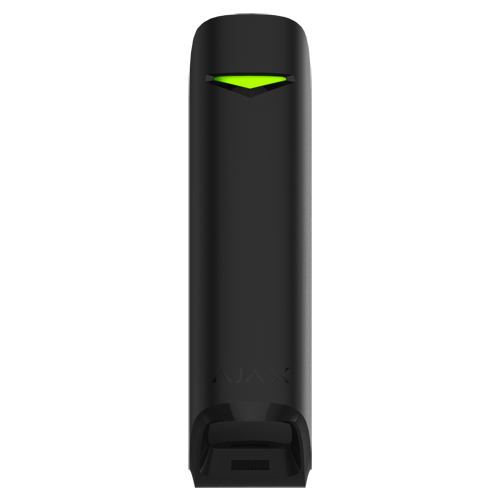

Curtain type PIR detector, Grade 2 from Ajax AJ-CURTAINPROTECT-B. Designed for indoor installation.
Main features:
- Wireless 868 MHz Jeweller
- Detection range 6~15 m / 6° H / 90° V
- Adjustable sensitivity
- Anti-sabotage tamper
- Indoor use
Box contents:
- Curtain type detector
- Grade 2 certificate
- Bidirectional
- Wireless 868 MHz Jeweller
- Double curtain type PIR
- Detection: Range from 6 to 15 m / 6° H / 90° V
- Motion detection indicator
- Anti-opening tamper
Technical specifications
| Technology | Double curtain type PIR |
|---|---|
| Detection field | 6~15 m / 6° H / 90° V / Installation 2.4 m |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (high, medium, low) |
| Anti-opening tamper | Available |
| LED indication | Alarm, tamper, signal |
| Power supply | 1 CR123A 3.0 V battery (approximate duration 3 years) |
| Operating temperature | -10 °C ~ 40 °C |
| Protection grade | IP54 |

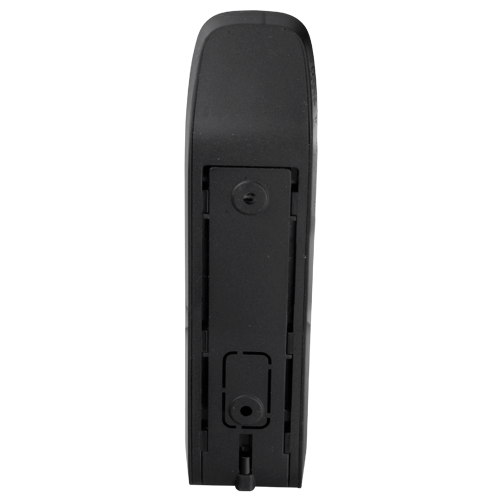

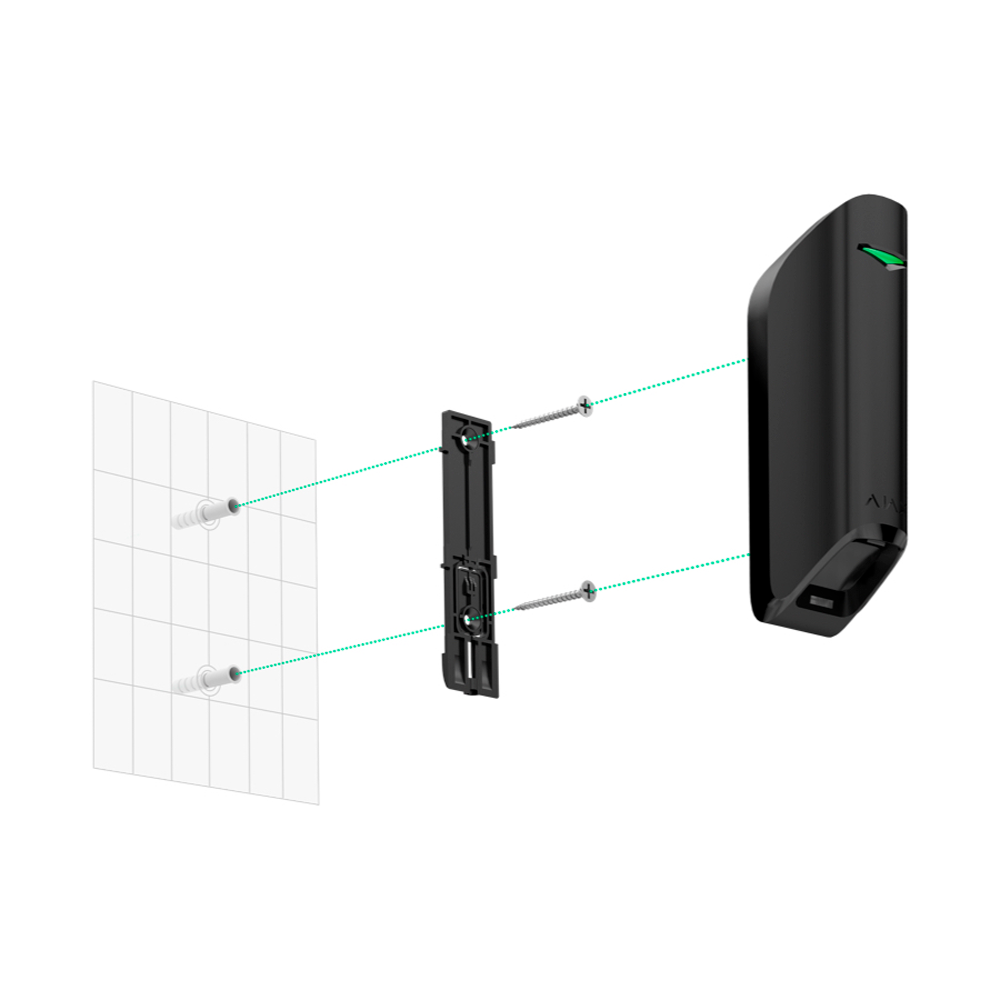

| Mounting | Includes standard mount and L-bracket |
| Dimensions | 134 (H) x 44 (W) x 34 (D) mm |
| Color | Black |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer to have it working, request an installation quote.
