Description
The detector that sends photos when it trips: you see on your phone what set the alarm off before you decide anything. A 12-metre volumetric PIR with pet immunity and an HDR camera that sends up to 5 images per detection. It is an indoor unit and the images arrive at VGA: they are there to understand the situation, not to identify anyone.

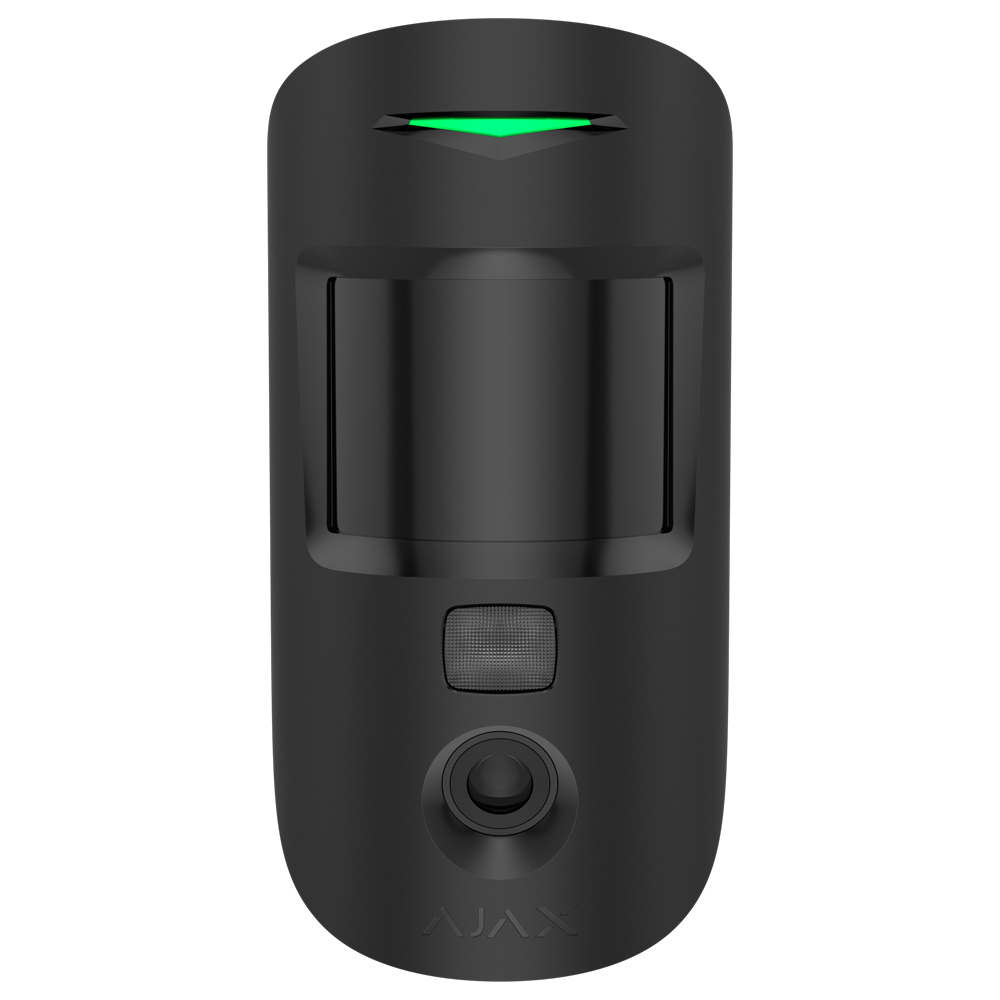

Grade 2 motion detector Ajax AJ-MOTIONCAM-HDR-B. Designed for indoor installation.
Main features:
- Replaces AJ-MOTIONCAM-B

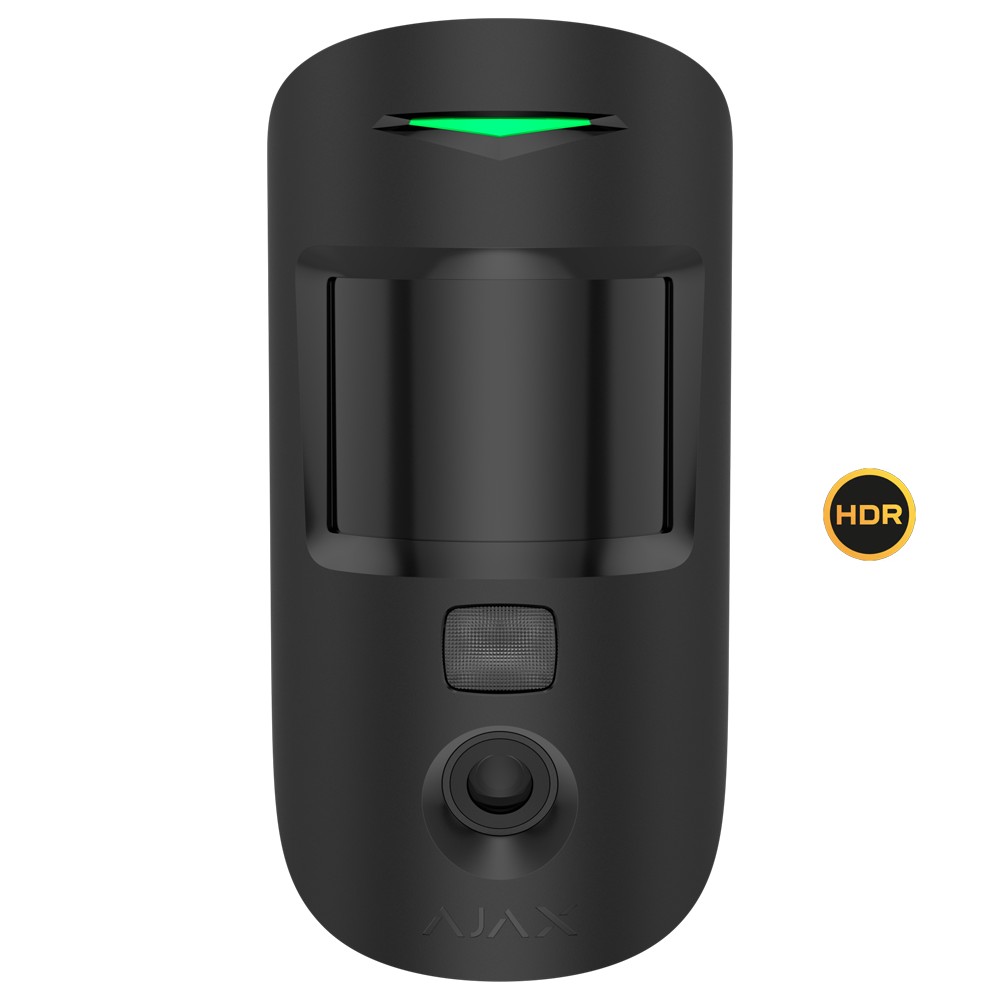

- HDR technology
- Image transmission up to VGA (640×480)
- Up to 5 images per detection
- Pet immunity / Detection range 12 m
Box contents:
- Motion detector
- Grade 2 certificate
- Bidirectional
- Wireless 868 MHz Jeweller
- Internal antenna range free space 1700 m
- Motion detection indicator
- Detection: Range 12 m / H: 88.5° / V: 80°
- Anti-tamper
Technical specifications
| Technology | PIR volumetric with HDR camera |
|---|---|
| Security grade | Grade 2 |
| PIR lens | 24 zones and 6 planes |
| Detection field | 12 m / H: 88.5° / V: 80° / Installation 2.4 m |
| Frequency | 868 MHz Jeweller and Wings (image transmission) |
| Transmission distance | ≤ 1700 m in open space |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable: 3 levels (low, medium, and high) |
| HDR technology | Available |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images per detection |
| Image transmission | Image sending and receiving in less than a minute |
| Infrared illumination | IR for night mode |
| LED indication | Alarm, tamper, signal |
| Battery | 2 CR123A 3.0 V batteries (up to 4 years lifespan) |
| Compatibility | Hub BP, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX 2 |
| Operating temp. | -10 ° C ~ 40 ° C |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it working, request an installation quote.
Who it’s for and who it’s not for. This is the indoor black motion detector, suitable for dark woodwork or walls, and the replacement for the AJ-MOTIONCAM-B. It is not designed for a porch or garden: it operates from −10 °C to 40 °C and does not have anti-masking, which is required for an outdoor detector.

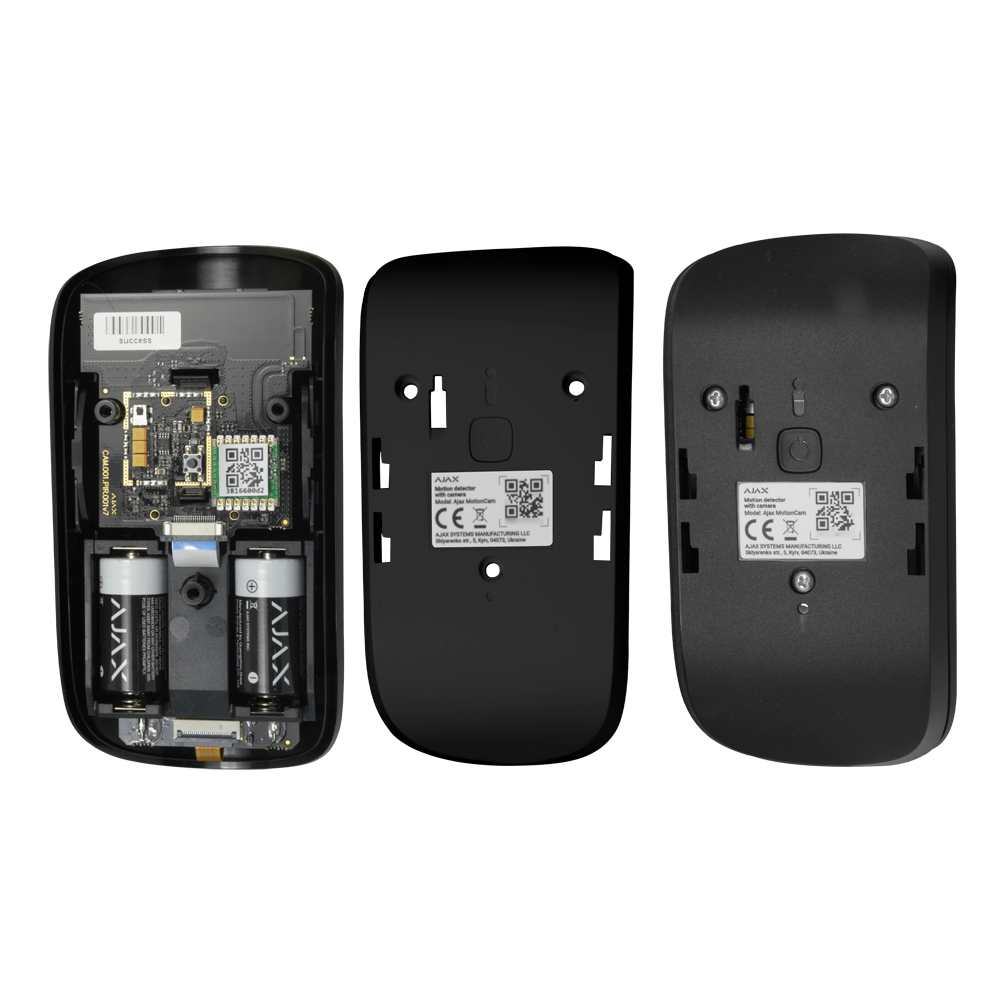

What’s included in the box. The motion detector with its bidirectional Jeweller radio at 868 MHz and internal antenna, certified Grade 2, with anti-tamper and infrared illumination for night mode. It uses 2 CR123A 3.0 V batteries, lasting up to 4 years.

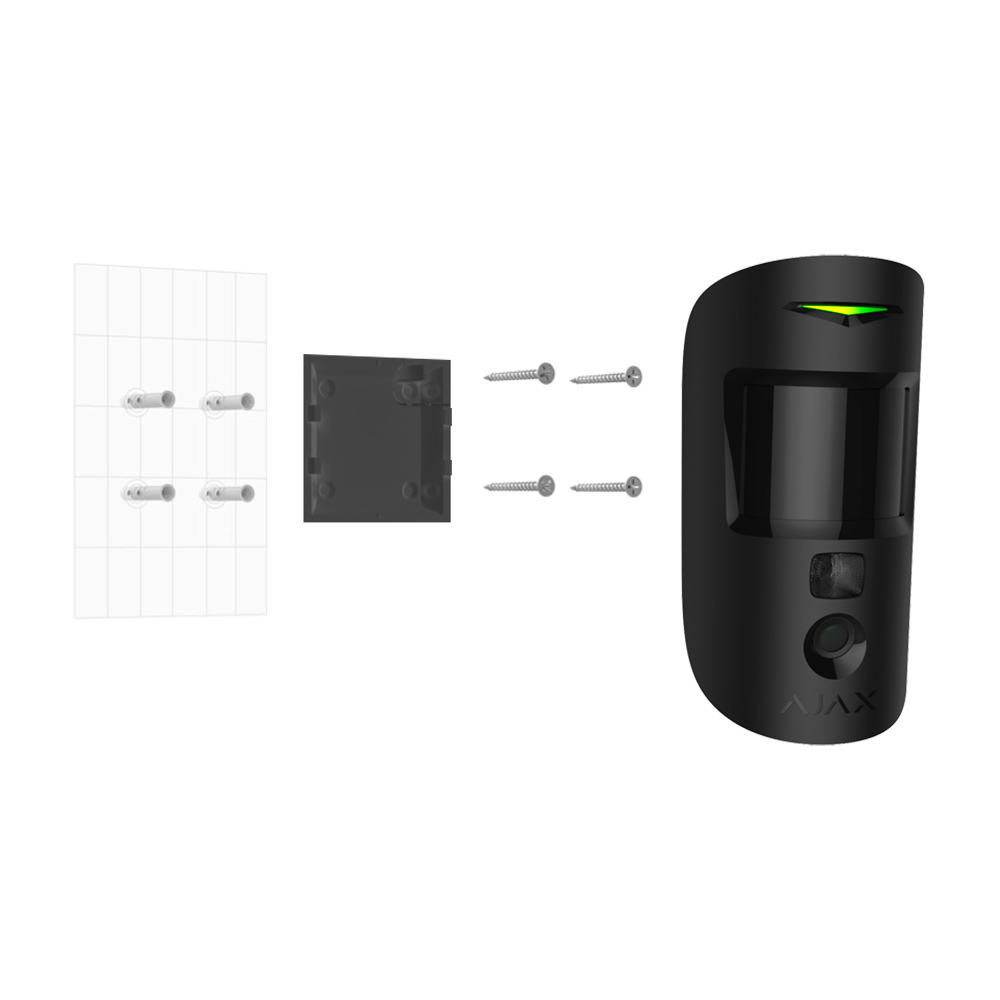

How to install it on the Costa del Sol. It is mounted indoors at a height of 2.4 m, which is the height for which its 24-zone and 6-plane lens is designed. No construction needed: just screw in the mount and pair it with the hub. What needs to be checked in the house is that from that point the required passage is covered and that the radio range is sufficient.
Frequently Asked Questions
How much area does it cover from a corner of the living room?
Its detection field is 12 m with 88.5° horizontally and 80° vertically, mounted at 2.4 m. This covers an average living room entirely; in a large open-plan space, two are needed.
How long does it take for the photos to arrive on the mobile?
The sending and receiving of images occurs in less than a minute, with up to 5 images per detection and a resolution of up to VGA (640 x 480).
Does it alert if something is placed in front of it to block it?
This model does not have anti-masking, and it’s good to know: this is one of the differences from the outdoor motion detector. It does have an anti-tamper feature, which triggers if the casing is attempted to be opened.
