Description

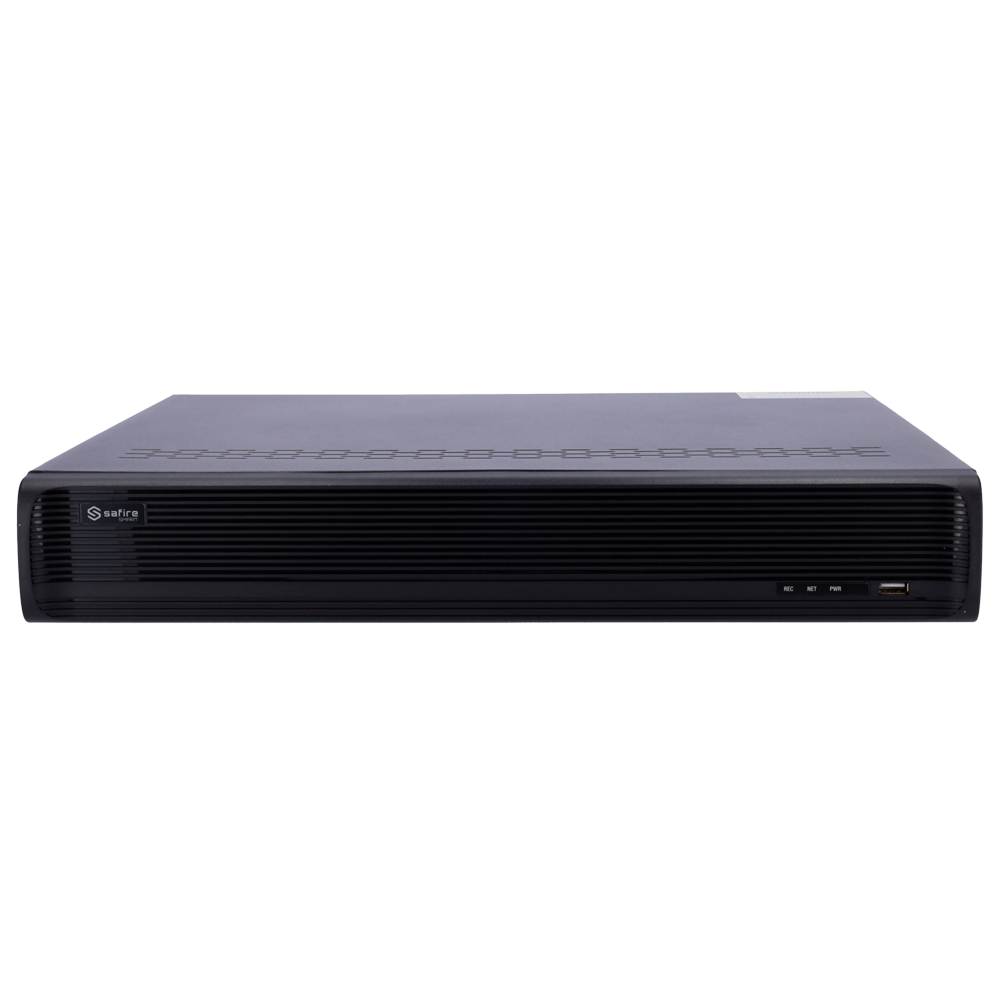

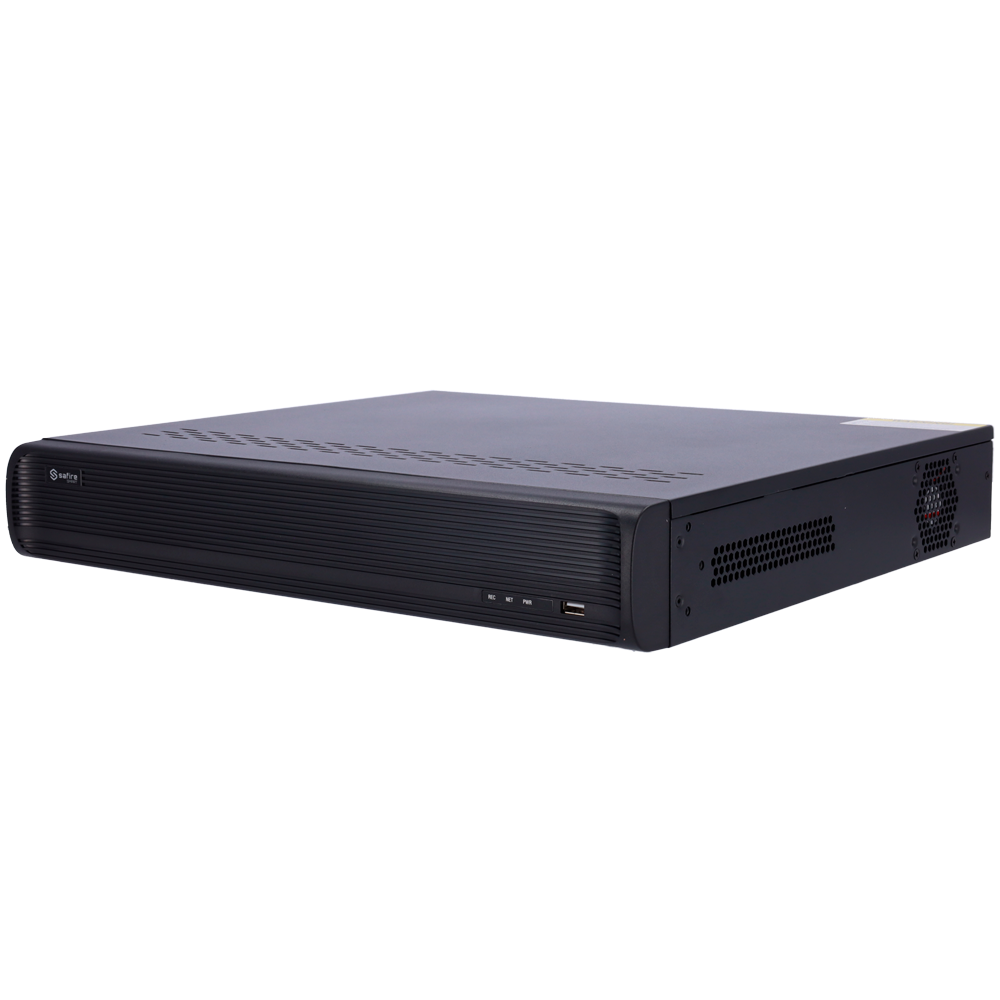

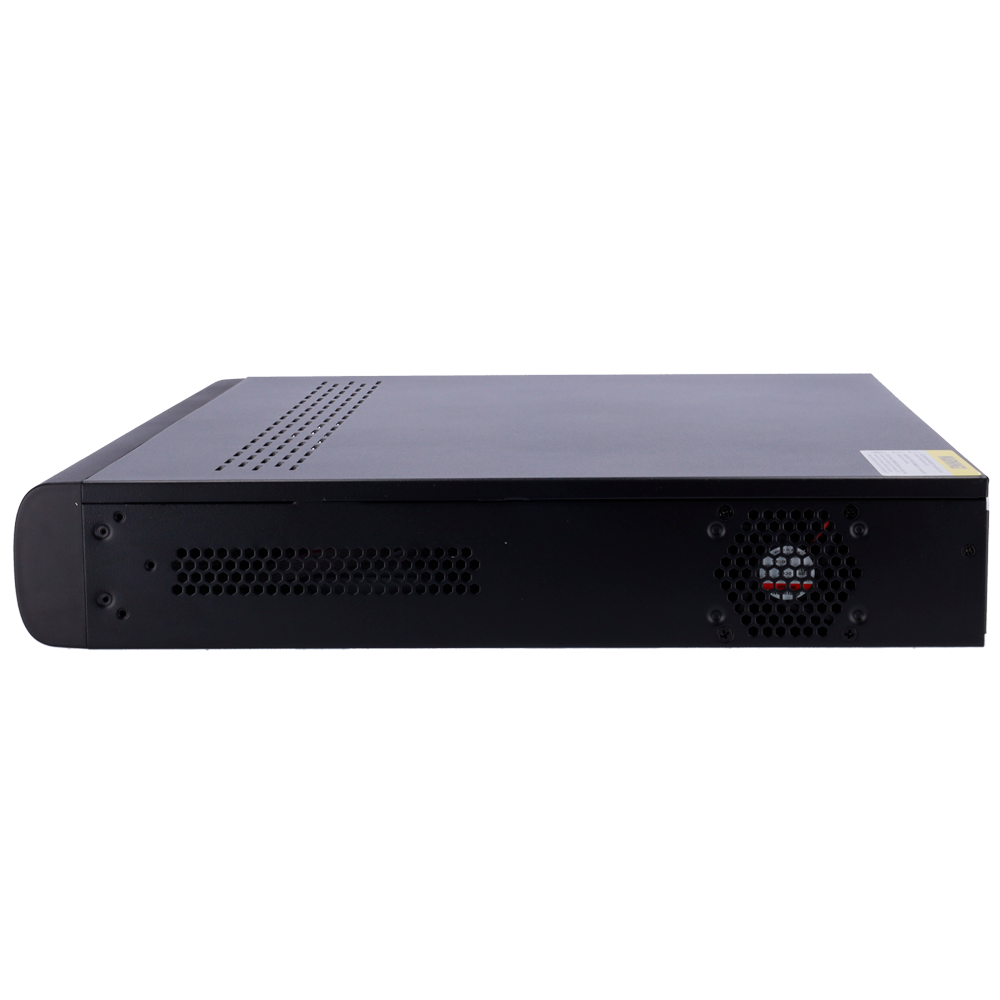

NVR recorder for Safire B2 range IP cameras SF-NVR8432A-16P-B2. Designed for indoor installation. 12 MP resolution and PoE powered, according to the manufacturer’s specifications.
Main features:
- 32CH video / PoE 16CH / H.265+ / 4HDD
- Resolution up to 12Mpx / Bandwidth 320Mbps
- Facial recognition / Smart search
- HDMI 4K, HDMI FullHD, and VGA / Dewarping Fisheye
Box contents:
- B2 Range – NVR recorder for IP cameras
- 32 CH
- 16-port PoE switch 150 W
- Supported bandwidth 320Mbps
- Maximum resolution 12 Megapixel
- Compression H.265+/H.265/H.264+/H.264
- 1 HDMI 4K output, 1 HDMI FullHD output, and 1 VGA output
- POS function
Technical specifications
| Range | B2 |
|---|---|
| IP camera inputs | 32CH IP |
| Compatible IP cameras | Safire Smart (native protocol), ONVIF |
| Two-way audio | 1 input / 1 output RCA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Audio compression | G.711(U/A) |
| Total bandwidth | 320 Mbps input / 256 Mbps output |
| Video outputs | 1 HDMI 4K, 1 HDMI 1080p, 1 VGA |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Recording method | Manual, scheduled, motion detection, smart events, alarm input, POS |
| POS function | Yes |
| Dewarping | Supports dewarping of Fisheye cameras |
| Alarms | 16 Inputs / 4 Outputs |
| External backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Internal storage | 4 x 3.5″ SATA3.0 HDDs up to 10 TB each (not included) |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, Safire Smart Smartphone App, and Safire Smart VMS PC Software |
| Power supply | ATX 300W(PoE) |
Dartel Solutions sells and installs it on the Costa del Sol. If you prefer us to leave it working, please request an installation quote.
